Product Name

 AC  24V(22~28V) /AC  36V(22~38V)   to DC 24 V

Brand

Fulree

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input

Input Voltage

 AC  24V(22~28V) /AC  36V(22~38V)

Input Voltage Range

 AC  24V(22~28V) /AC  36V(22~38V)

Output

Output Voltage

DC12V

Output Current

1A 1.5A  2A   Max

Output Power

 24W 36W  48W Max

 Conversion Efficiency

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load current

< 100mA

Working Temperature

-40~80℃

Waterproof Rating

IP68

Protection

Over-current protection

Overheat protection

Short circuit protection

 Input/Output Reverse Polarity Protection

No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive. If you need this function, please contact with us to customize it.

Application

Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts

GPS Navigation, Monitoring, Air conditioning

LED car display, DVD, LED bulb lights

Wind Power System, Solar Panel Power System

Electrical appliances, water pumps, industrial equipment, telecommunications and so on.

Certification

CE/RoHS

  Case Material

Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on

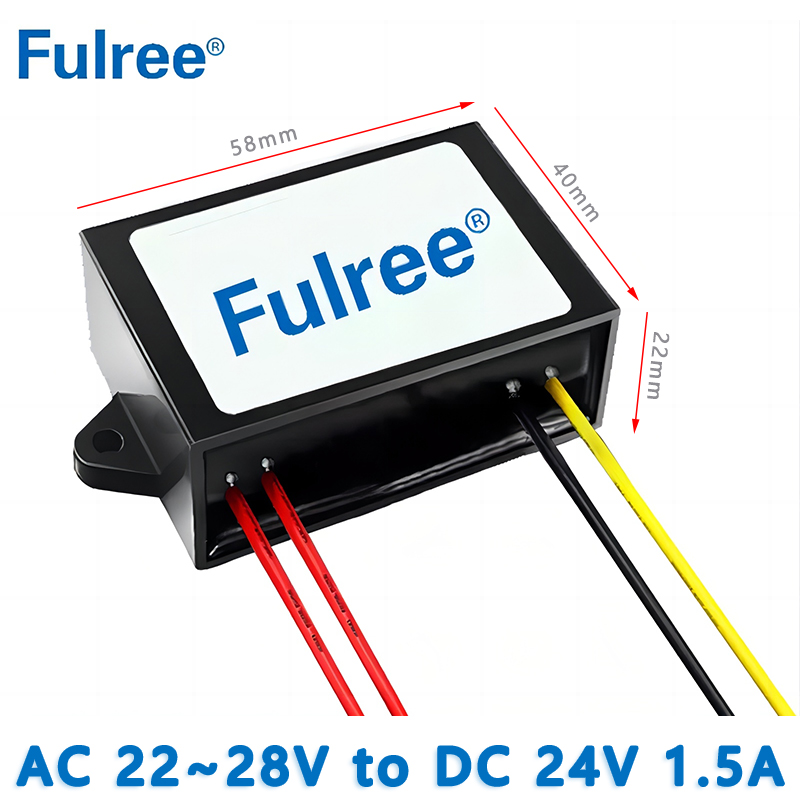

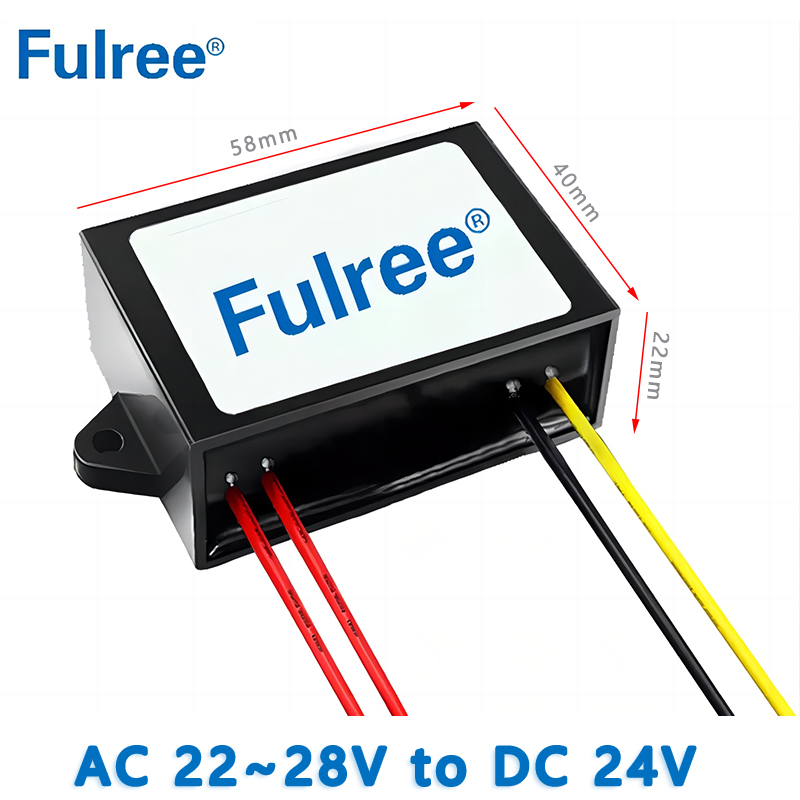

  Product Size (L x W x H)

58*40*22mm

Installation Cable Length

 13-14cm

Product Weight

 97g

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection

OEM Service

Accept OEM logo/label/manual/packing box, Contact Fulree Now!

Customized Service

Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now!
