Input AC(DC) 24V/36V (AC14-38V and DC 14-55V ) to Output DC 12V 1A / 2A /3A Max AC/DC to DC converter Car CCTV Power Supply
Product Description
|
Product Name
|
Fulree AC DC Converter 36V 24V to 12V
|
|
Brand
|
Fulree
|
|
Model No.
|
AD381201B / AD381202B / AD381203B |
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
AC(DC) 24V 36V
|
|
Input Voltage Range
|
AC14-38V DC 14-55V
|
|
Output
|
|
Output Voltage
|
DC 12V
|
|
Output Current
|
1A / 2A /3A Max
|
|
Output Power
|
12W / 24W /36W Max
|
|
Conversion Efficiency
|
93% |
|
Voltage regulation
|
±3%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 150mV
|
|
No-load current
|
< 100mA
|
|
Working Temperature
|
-20~80℃
|
|
Waterproof Rating
|
IP68
|
|
Protection
|
Over-current protection
|
|
Overheat protection
|
|
Instant absorption of high voltage protection
|
|
Short circuit protection
|
|
Input/Output Reverse Polarity Protection
|
No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive, If you need this function, please contact with us to customize it.
|
|
Application
|
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts
GPS Navigation, Monitoring, Air conditioning
LED car display, DVD, LED bulb lights
Wind Power System, Solar Panel Power System
Electrical appliances, water pumps, industrial equipment, telecommunications and so on.
|
|
Certification
|
CE/RoHS/FCC
|
|
Case Material
|
Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|
Product Size (L x W x H)
|
58*40*22mm
|
|
Installation Cable Length
|
13-14cm
|
|
Product Weight
|
97g
|
|
Warranty
|
12 months, lifetime up to 100,000 hours
|
|
Cooling Way
|
Free air convection
|
|
OEM Service
|
Accept OEM logo/label/manual/packing box, Contact Fulree Now!
|
|
Customized Service
|
Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now!
|

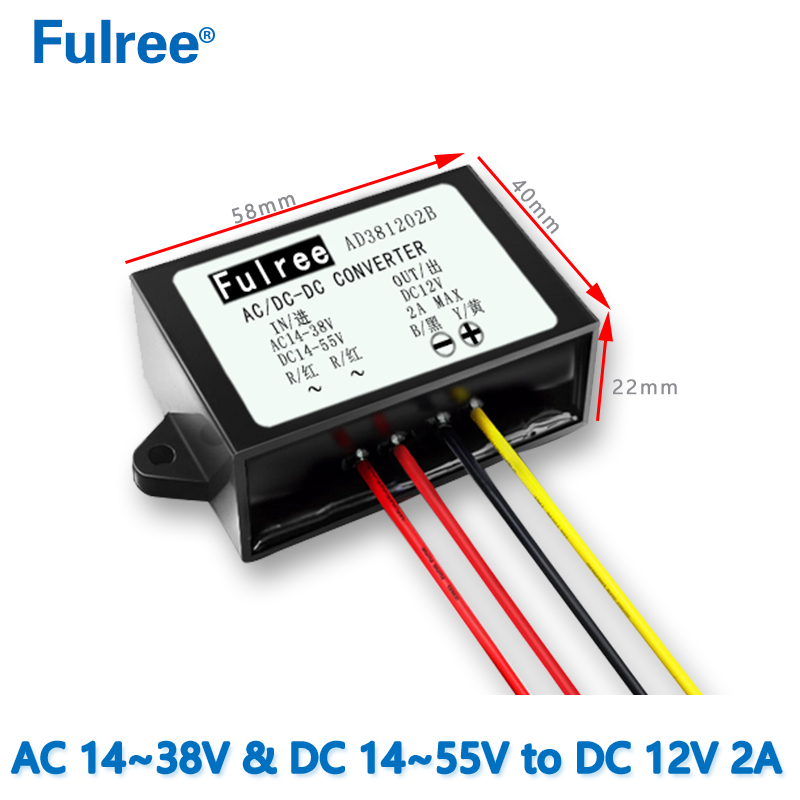

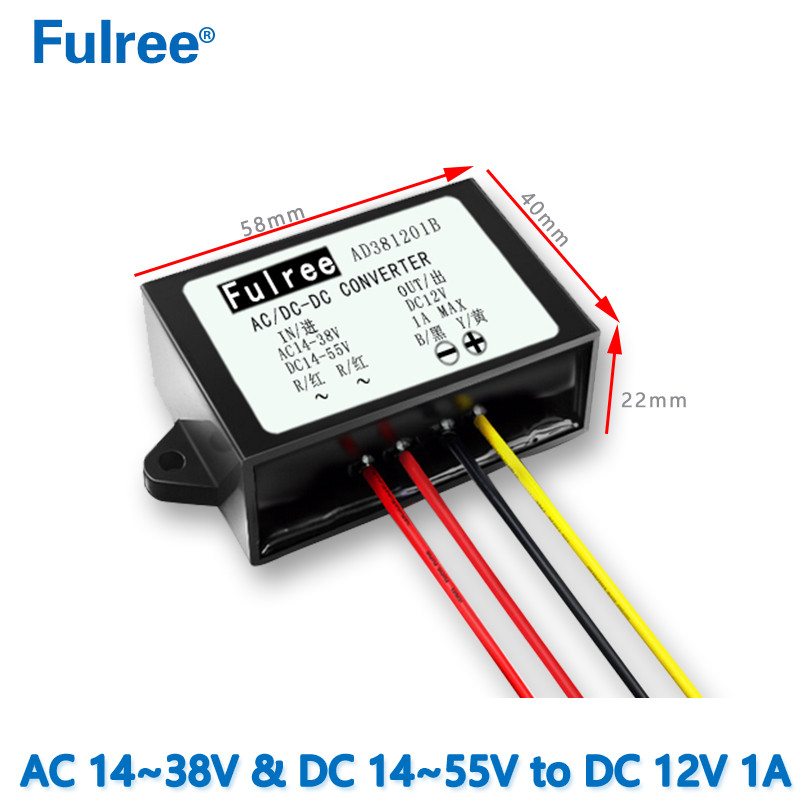

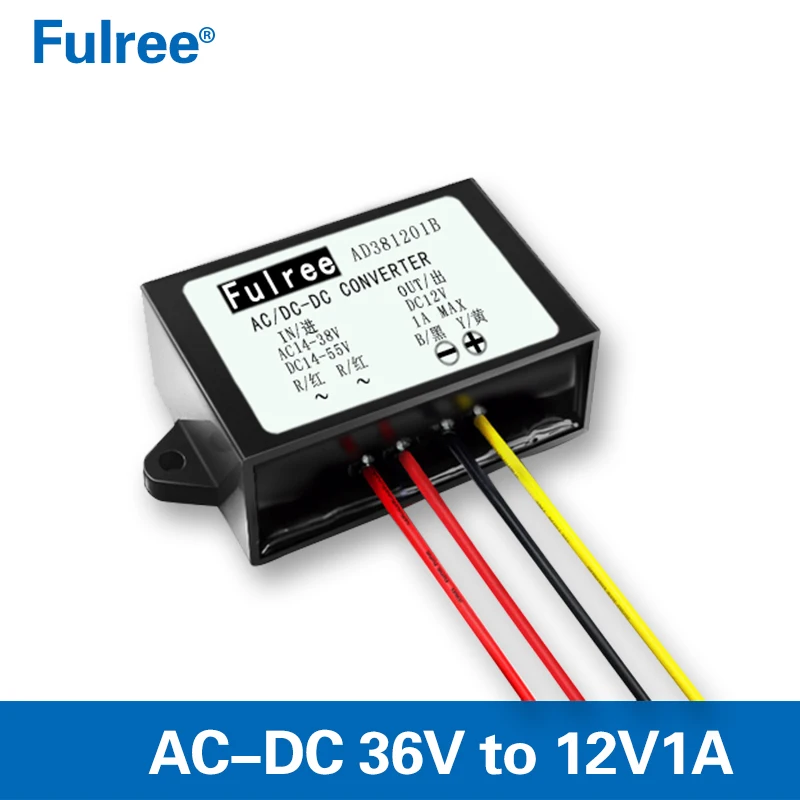

Product Picture
[High Quality] Fulree 24Vac 36Vac to 12Vdc 1A 2A 3A Step Down Buck 36 24 Volt AC to 12 Volt DC Converter Car CCTV Power Supply
![[High Quality] Fulree 36Vac 24Vac to 12Vdc 1A 2A 3A Step Down Buck 36 24 Volt AC to 12 Volt DC Converter Car CCTV Power Supply](https://sc01.alicdn.com/kf/HTB1ZzHQRVXXXXa7apXXq6xXFXXXq/226356380/HTB1ZzHQRVXXXXa7apXXq6xXFXXXq.jpg)
![[High Quality] Fulree 36Vac 24Vac to 12Vdc 1A 2A 3A Step Down Buck 36 24 Volt AC to 12 Volt DC Converter Car CCTV Power Supply](https://sc02.alicdn.com/kf/HTB1bf_5RVXXXXcNXVXXq6xXFXXXg/226356380/HTB1bf_5RVXXXXcNXVXXq6xXFXXXg.jpg)
![[High Quality] Fulree 36Vac 24Vac to 12Vdc 1A 2A 3A Step Down Buck 36 24 Volt AC to 12 Volt DC Converter Car CCTV Power Supply](https://sc02.alicdn.com/kf/HTB1K1gGRVXXXXXMXXXXq6xXFXXXi/226356380/HTB1K1gGRVXXXXXMXXXXq6xXFXXXi.jpg)
![[High Quality] Fulree 36Vac 24Vac to 12Vdc 1A 2A 3A Step Down Buck 36 24 Volt AC to 12 Volt DC Converter Car CCTV Power Supply](https://sc01.alicdn.com/kf/HTB10mUGRVXXXXXDXXXXq6xXFXXXb/226356380/HTB10mUGRVXXXXXDXXXXq6xXFXXXb.jpg)
![[High Quality] Fulree 36Vac 24Vac to 12Vdc 1A 2A 3A Step Down Buck 36 24 Volt AC to 12 Volt DC Converter Car CCTV Power Supply](https://sc02.alicdn.com/kf/HTB1dEDIRVXXXXcgapXXq6xXFXXXX/226356380/HTB1dEDIRVXXXXcgapXXq6xXFXXXX.jpg)
Packaging & Delivery
1. We pack each item with OPP bag individually, then put all items in export cartons (around 50-300pcs per carton). The export cartons will be taped to protect the parcel from water stains or something others, it's not easy to break or damage during the shipment by air or sea.
2. We make shipment between 3-15 days for normal order and 3 to 5 days for samples.
3. We can offer you express like FedEx, DHL, UPS & TNT when you make a relatively small order like samples. The ocean shipping is also available when you place a big order. The customers can use their own freight forwarder account.
4. If you need some special request on shipment, please note us before placing order.
Why Choose Fulree?
Service ......... RMA(24/7 Technical Support), OEM, ODM
Quality...........100% full inspection before delivery, Less than 0.5% of failure rate!
Warranty....... Up to 12 months!
Price..................Competitive Factory Price!
Professional......Produce security DC DC converter for 8 years in China!
Reliable.............One of the largest power supply business manufacturers in China!
Assurance.........Any problem of quality, Fulree would refund the payment!
Payment.............T/T bank wire transfer, Escrow, West Union and Paypal!
Delivery...............Fast! After receive payment 3-15 days for normal small orders!
Privacy …….....Protect your sales area, designs, ideas and all your private information!
Fulree................Your best DC DC Converter Solution Choice! We Design and support!
