| Model | F2596AC/DC |
| Input rated voltage | 24V |

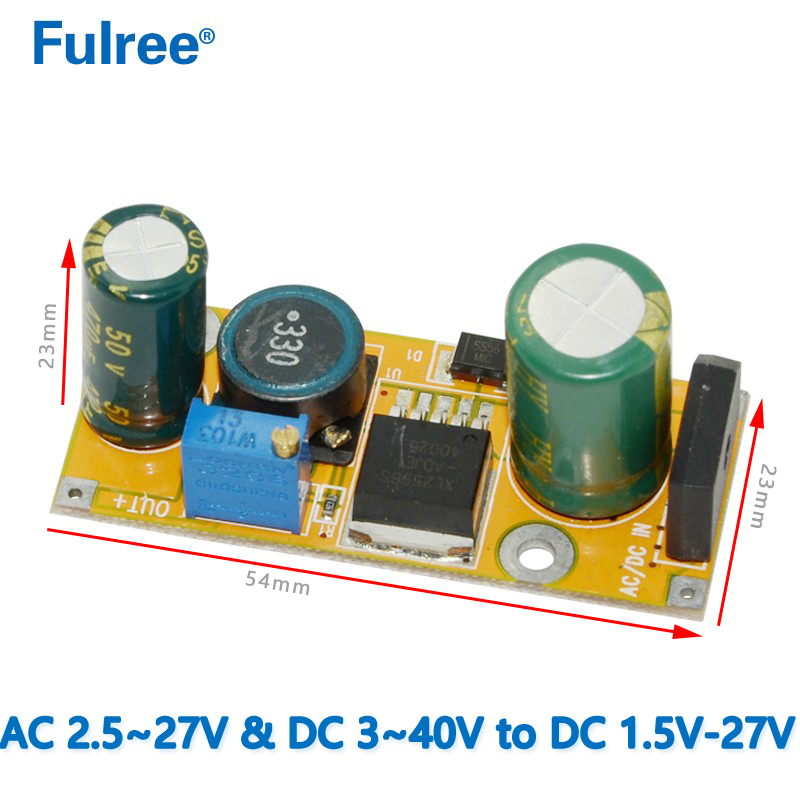

| Input voltage range | 2.5-27V AC or DC 3-40V (input, regardless of positive and negative) |
| Efficiency |
≥ 85% |
| Output voltage | DC 1.5V-27V Adjustable (input voltage must higher 2V than output) |
| Output current | 3A MAX (Continuously work 2A or less for output lower thant 5V, 1.5A or less for output 6-9V and 1A or less for output 9.2-15V) |
| Switching frequency | 150KHz |
| Voltage regulation | ± 0.5% |
| Load regulation | ± 0.5% |
| Working temperature |
-40°c ~+85°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties |
non-isolated buck module(buck) |
| Rectification | synchronous rectification |
| Full load temperature rise: | 40°c |
| Protection | Over-current, Over-temperature |
| NW | 70G |

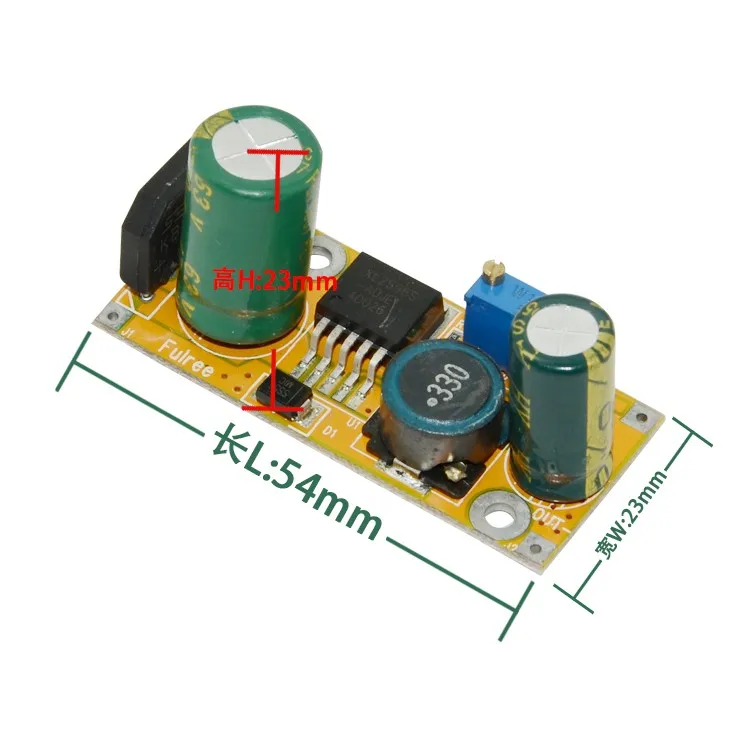

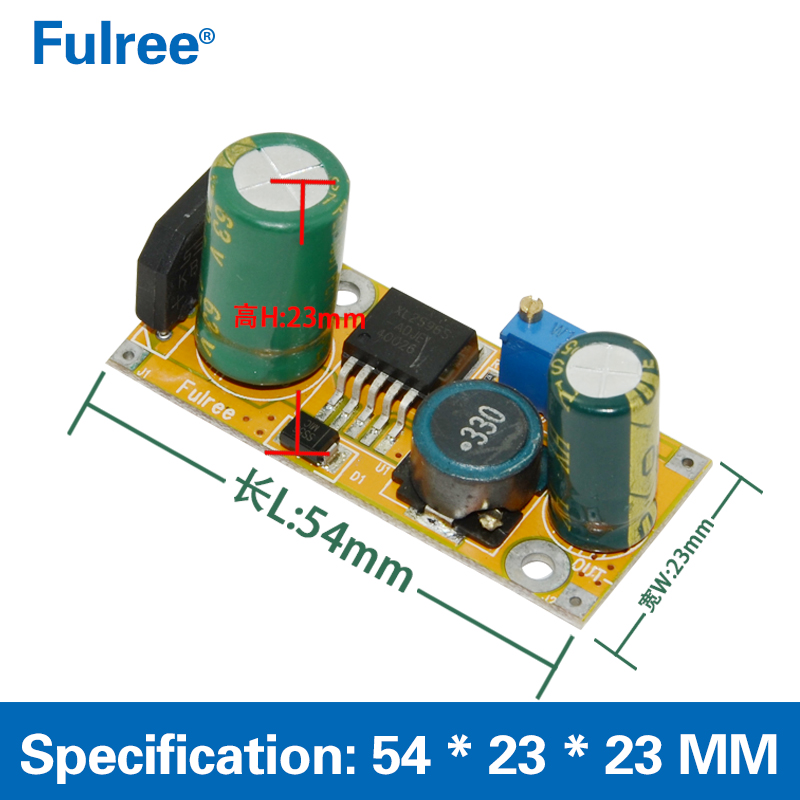

| Product size | 54*23*23mm |
|
Attention: >Pls install according to the the label strictly, |
|
