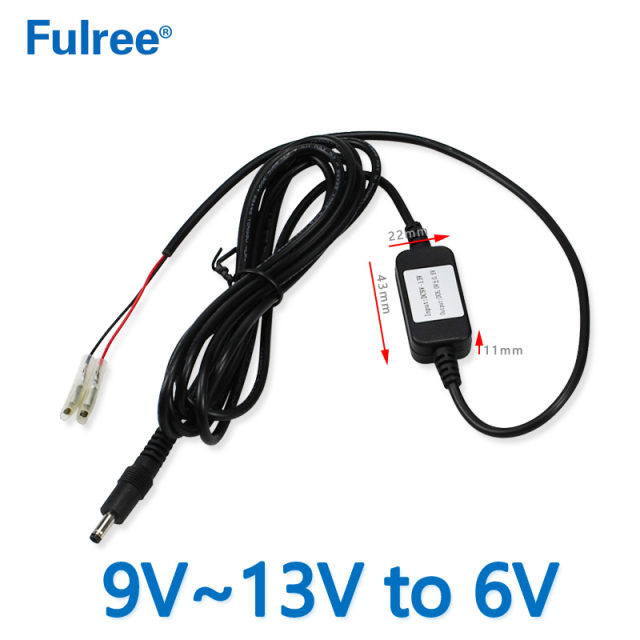

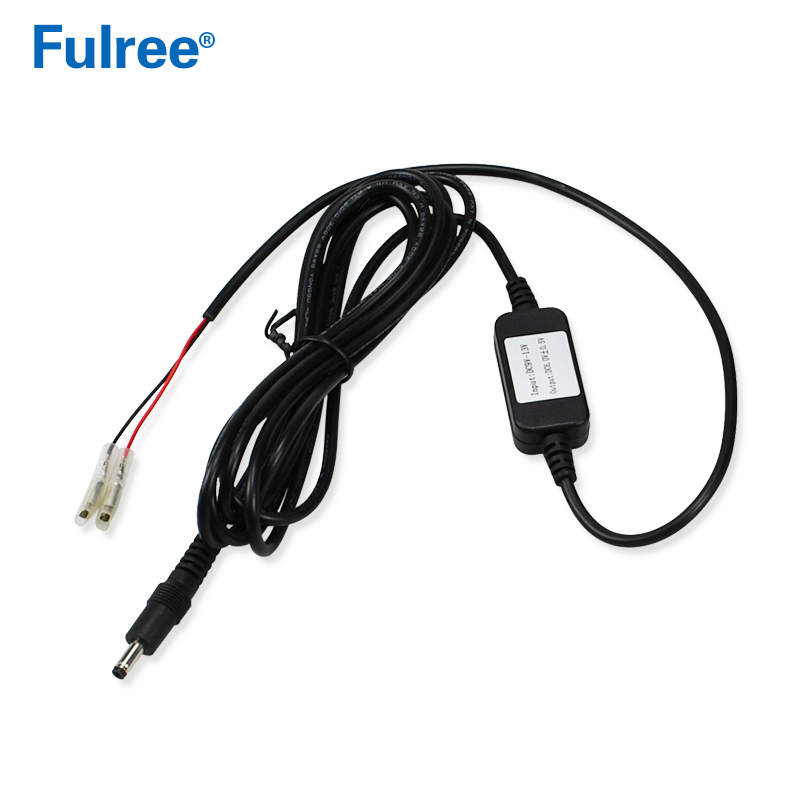

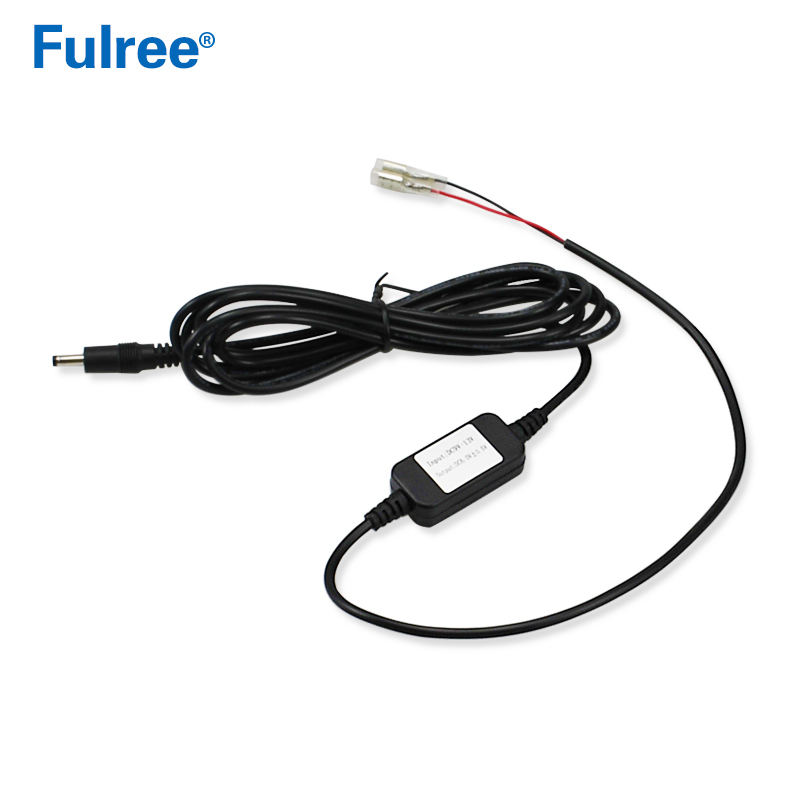

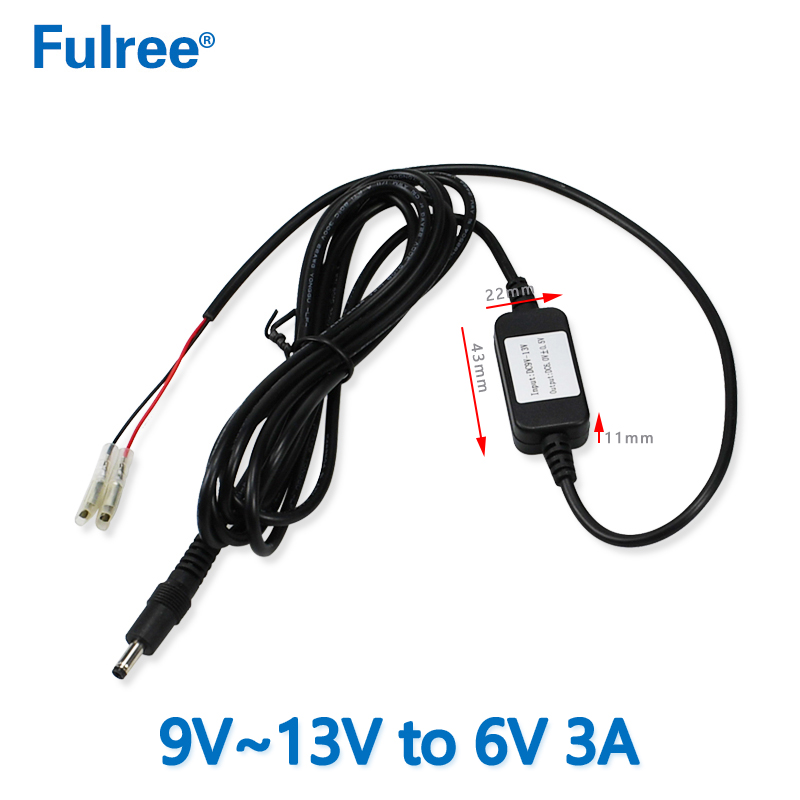

DLC Covert Camera Input DC 12V(9V-13V) to Output DC 6V 3A Max DC to DC Power Converter CO2540 Automotive Car Step Down Buck Cable Line Wire Terminal Plug 6.3mm

Product Description
>Input voltage: DC 12V (9V-13V)
>Output voltage:DC 6V
>Output current: 3A Max
>Output Power: 15W Max
>Input Length: customized 40CM or other length;
>Input Type: 6.3mm plug or other customzied connector;
>Output Length:customized 2M or other length;
>Output Type: DC5.5*2.1MM / DC5.5*2.5MM / DC4.0*1.7MM / DC3.5*1.35MM / DC2.5*0.7MM or other customized connector
>Size: L43mm*W22mm*H11mm(not include the cable)
Benifits: Eas Install Wire Charger for Car DVR GPS Tablet Phone Device.
Specifications:
• Module Properties: non-isolated buck module (BUCK)
• Rectification: synchronous rectification • Minimum pressure difference: 3V
• Conversion efficiency: 90% • Soft-start time: 500mS • Output ripple: 50mV (MAX) 20M-
bandwidth
• Full load temperature rise: 50°c
• Load regulation: ± 1%
• Voltage regulation: ± 2%
• Dynamic response speed: 5% 200uS • Operating Temperature: Industrial (-40°c to +85°c) ( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Feature:
• Overcurrent protection • Short-circuit protection • Input Reverse Polarity Protection • Waterproof: NONE
