Input DC 5V 6V 7V 8V 9V 10V 11V ( 5-11V) to Output DC 12V 1A 2A 3A 4A 5A 6A 8A 10A Boost Step Up DC to DC Converter

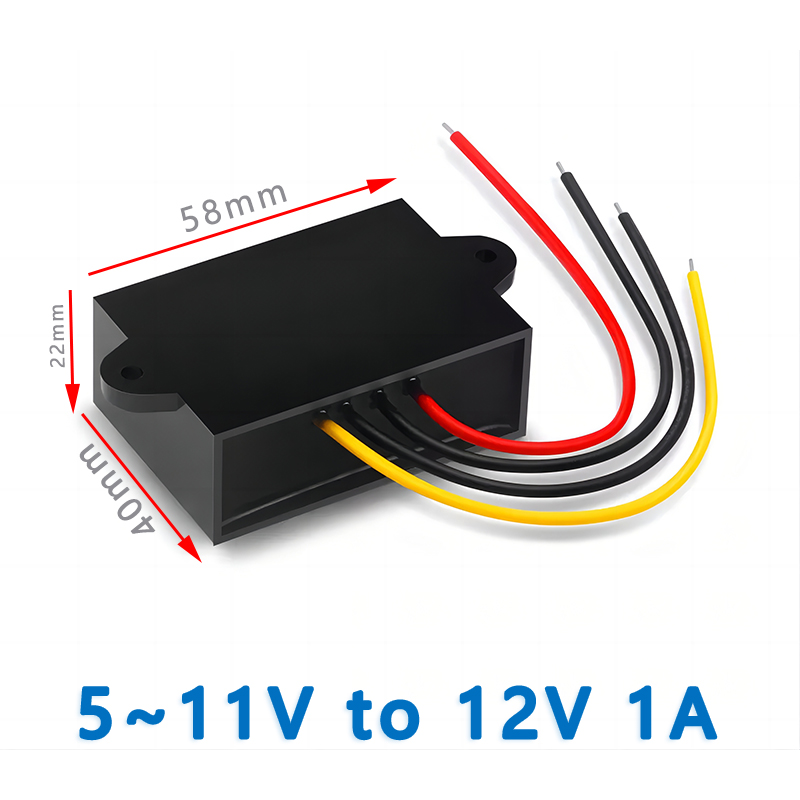

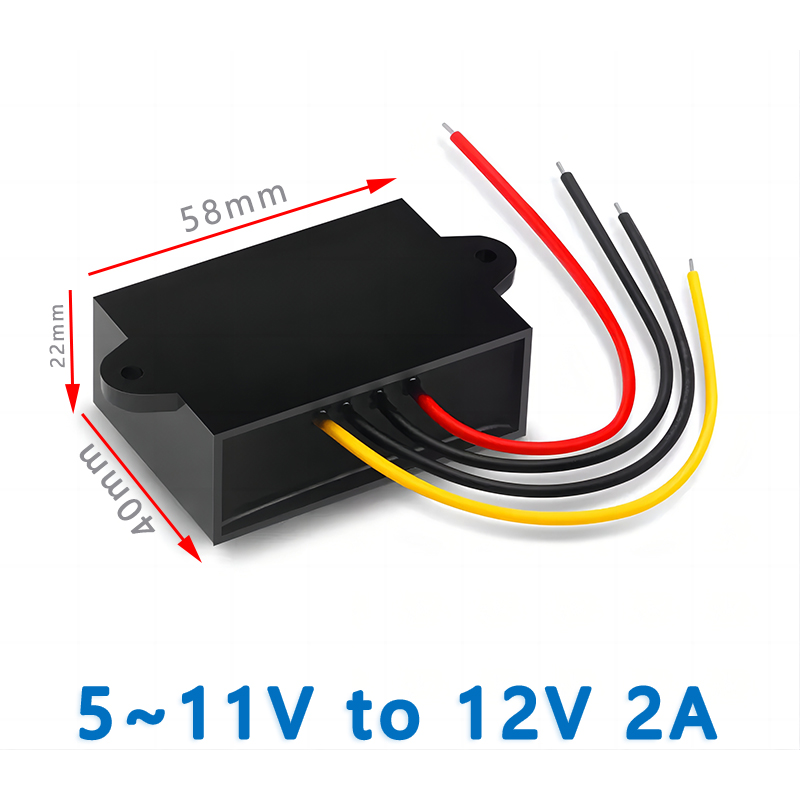

Input DC 5V 6V 7V 8V 9V 10V 11V (5-11V) to output DC 12V 1A 2A 3A 4A plastic shell DC converter
| Product Name |
Input DC 5V 6V 7V 8V 9V 10V 11V (5-11V) to output DC 12V 1A 2A 3A 4A plastic shell DC converter |
| Input rated voltage |
DC 5V 6V 7V 8V 9V 10V 11V |
| Input voltage range |
DC 5-11V |
| Efficiency |
93% (half load), 91% (full load) |
| Output voltage |
DC 12V |
| Output current |
1A / 2A/ 3A /4AMax |
| Output rated power |
12W / 24W / 36W /48W Max |
| Voltage regulation |
< 1% |
| Load regulation |
< 2% |
| Working temperature |
-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,
or to enhance heat dissipation)
|
| Module Properties |
non-isolated boost module
|
| Rectification |
synchronous rectification |
| Waterproof rating |
IP68 |
| Full load temperature rise: |
50°c |
| Protection |
Over-current, Over-temperature,Instant absorption of high voltage protection
waterproof IP68 design, anti-shock protection
|
| Short-circuit protection |
NO, if need pls add fuse on the positive pole on input |
| Input Reverse Polarity Protection |
None (Please Series diode at the input port.) |
| NW |
100G |
| Product size |
58*40*22MM |
|
Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
|

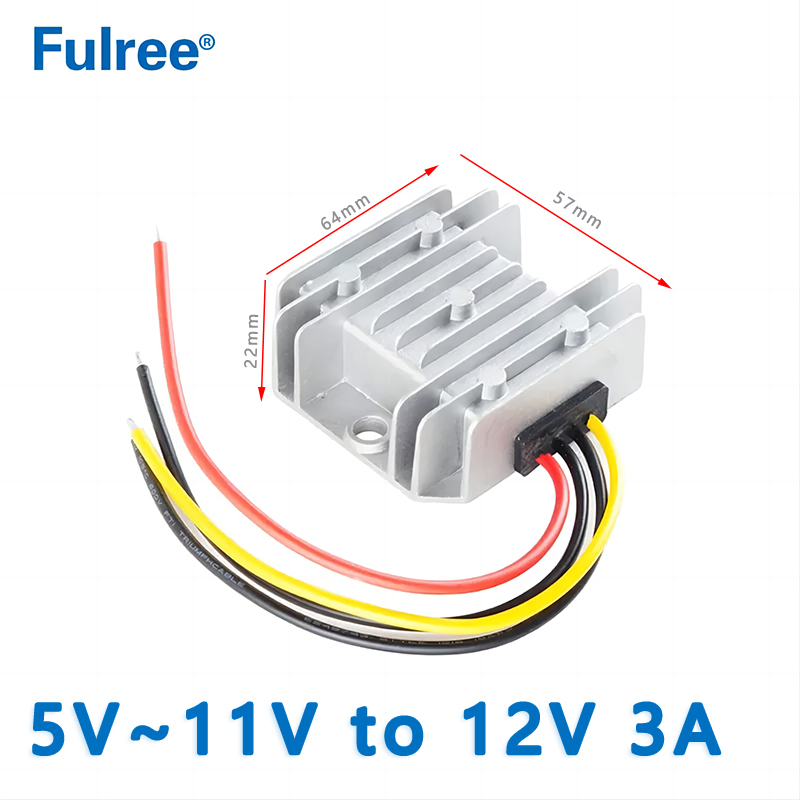

Input DC 5V 6V 7V 8V 9V 10V 11V (5-11V) to output DC 12V 1A 2A 3A 4A medium aluminum shell DC converter
| DC (5-11V) to DC 12V 1A 2A 3A 4A medium aluminum shell DC converter |
| Input voltage range |
5V 6V 7V 8V 9V 10V 11V (5-11V) |
| output voltage |
12V |
| Output current |
1A 2A 3A 4A |
| output power |
12W 24w 36w 48w |
| Shell material |
Die cast aluminum |
| potting material |
epoxy resin |
| Waterproof grade |
IP68 |
| conversion efficiency |
95% |
| Static power consumption |
10~15ma |
| Wire length |
13-14cm |
| Net weight |
120g |
| Product size |
66*60*22mm |

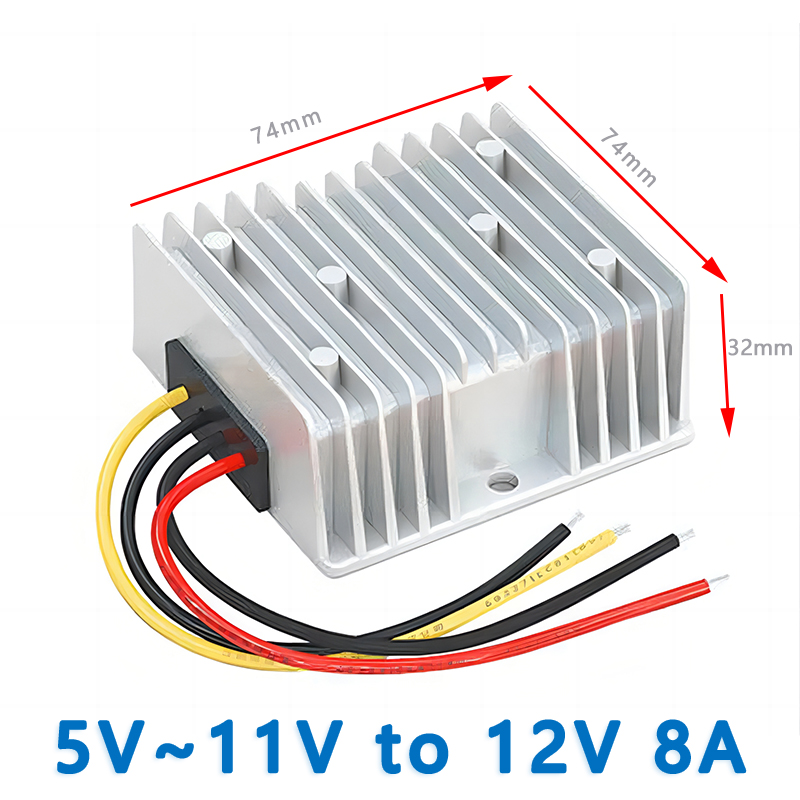

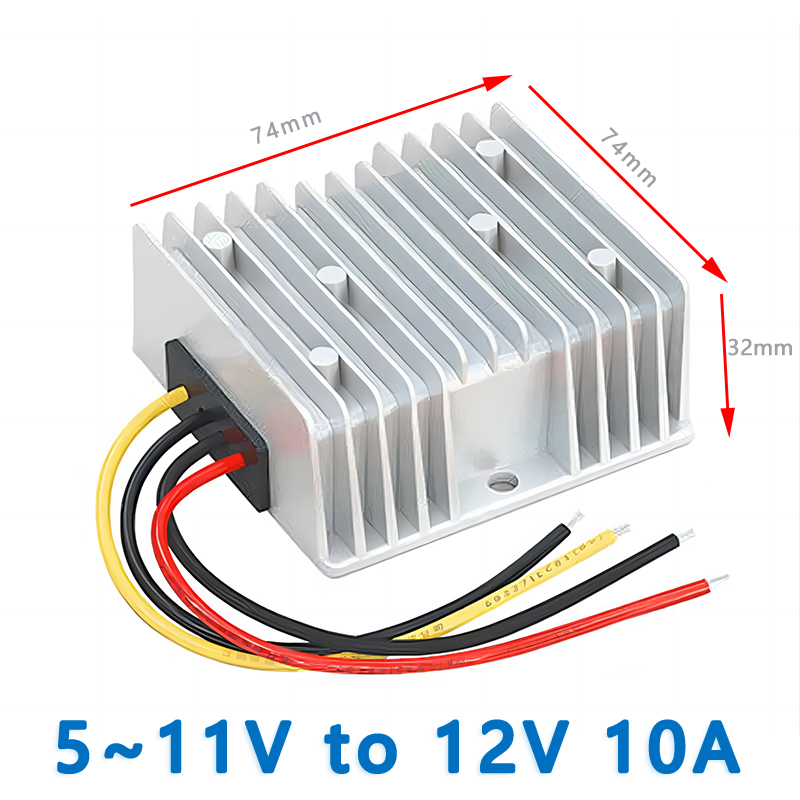

Input DC 5V 6V 7V 8V 9V 10V 11V (5-11V) to output DC 12V 5A 6A 8A 10A large aluminum shell DC converter
| DC 5-11V to DC 12V 5A 6A 8A 10A large aluminum shell DC converter |
| Input voltage range |
DC 5V 6V 7V 8V 9V 10V 11V (5-11V) |
| output voltage |
12V |
| Output current |
5A 6A 8A 10A |
| output power |
60W~120W |
| Shell material |
Die cast aluminum |
| potting material |
epoxy resin |
| Waterproof grade |
IP68 |
| conversion efficiency |
95% |
| Net weight |
0.25KG |
| Product size |
74*74*32MM |
