Input DC 12V(10-17V) to Output DC 19V 1A 2A 3A 5A 10A Max Step up Boost DC to DC Converter Car Notebook Laptop Computer Power Supply

5.0 (25)

$6.94

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

3% OFF WITH PURCHASE OVER 10 UNITS
6% OFF WITH PURCHASE OVER 50 UNITS
10% OFF WITH PURCHASE OVER 100 UNITS

Description

Input DC 12V(10-17V) to Output DC 19V 1A 2A 3A 5A 10A Max Step up Boost DC to DC Converter Car Notebook Laptop Computer Power Supply

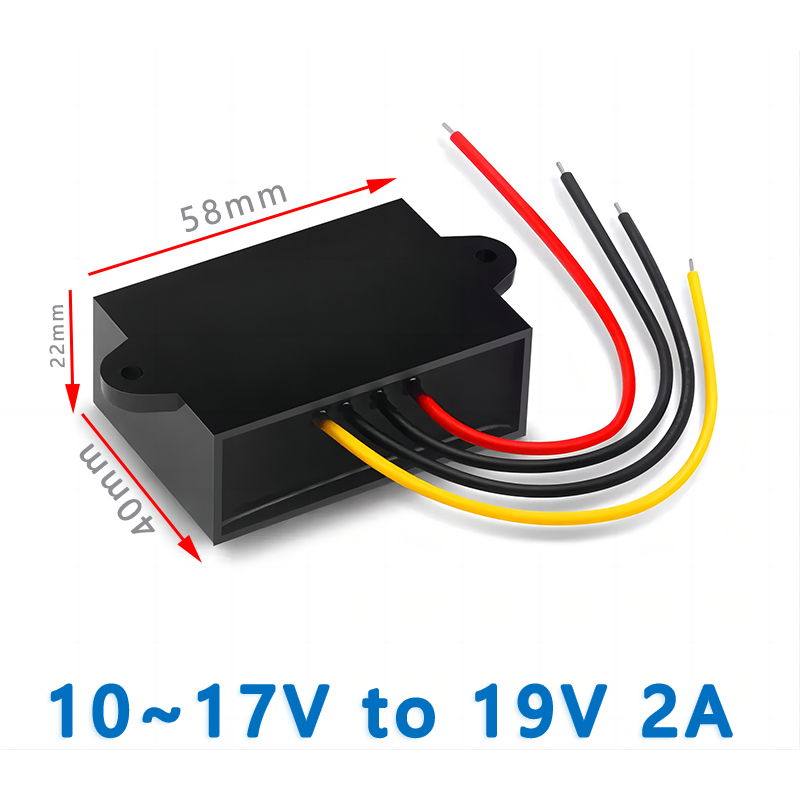

Product Name	12v to 19v dc converter

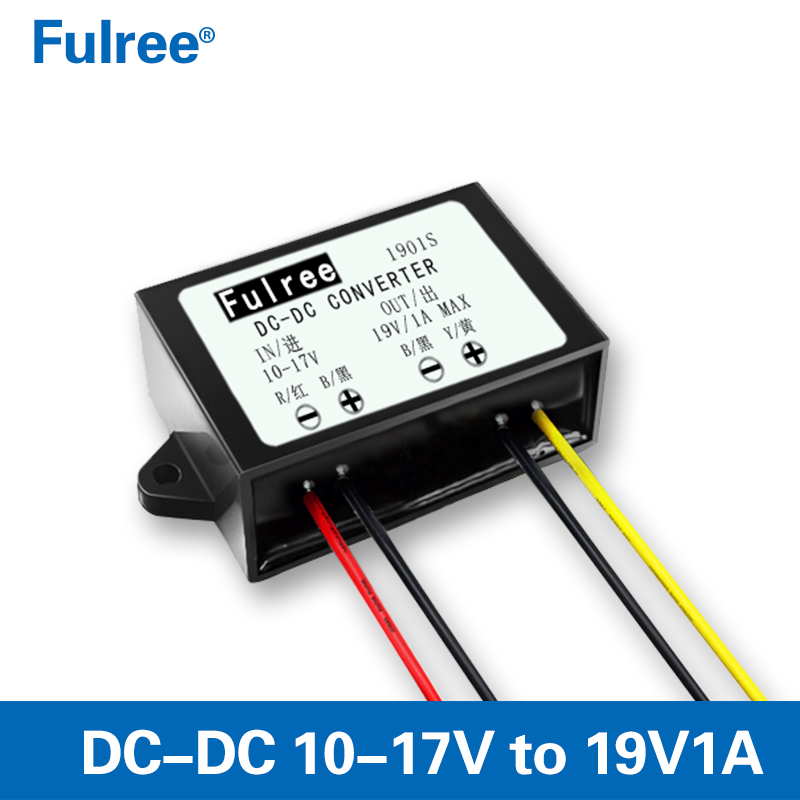

Model	F12S19V1A3S / F12S19V2A3S / F12S19V3A3S (Old:1901S / 1902S / 1903S)
Input rated voltage	DC 12V
Input voltage range	DC 10-17V
Efficiency	93% (half load), 91% (full load)
Output voltage	DC 19V
Output current	1A / 2A / 3A Max
Output rated power	19W / 38W / 57W Max
Voltage regulation	< 3%
Load regulation	< 2%
Working temperature	-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Module Properties	non-isolated boost module
Rectification	synchronous rectification
Waterproof rating	IP67
Full load temperature rise:	45°c
Protection	Over-current,Over-temperature Protection
Short-circuit protection	NO, if need pls add fuse on the positive pole on input
Input Reverse Polarity Protection	None (Please Series diode at the input port.)
NW	97G

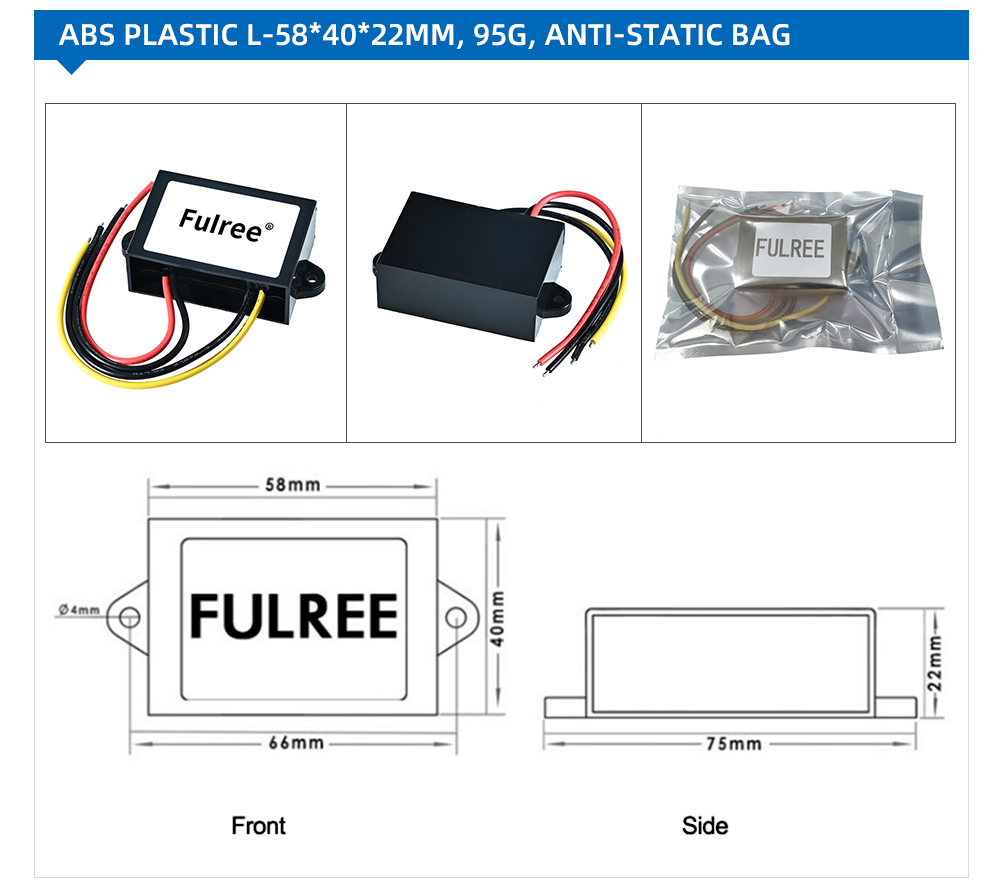

Product size	584022MM
Other output current option for 12V to 19V	8A 10A, 15A(pls contact with our sales manager if need)
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged >To assure this converter has the sufficient voltage and power, pls make sure the voltage and power input is enough.

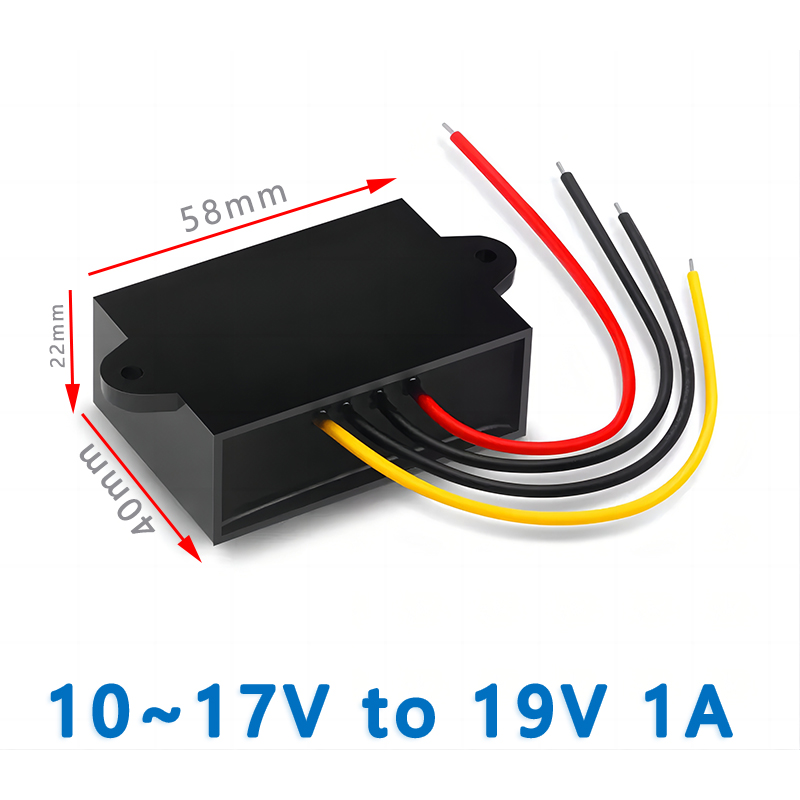

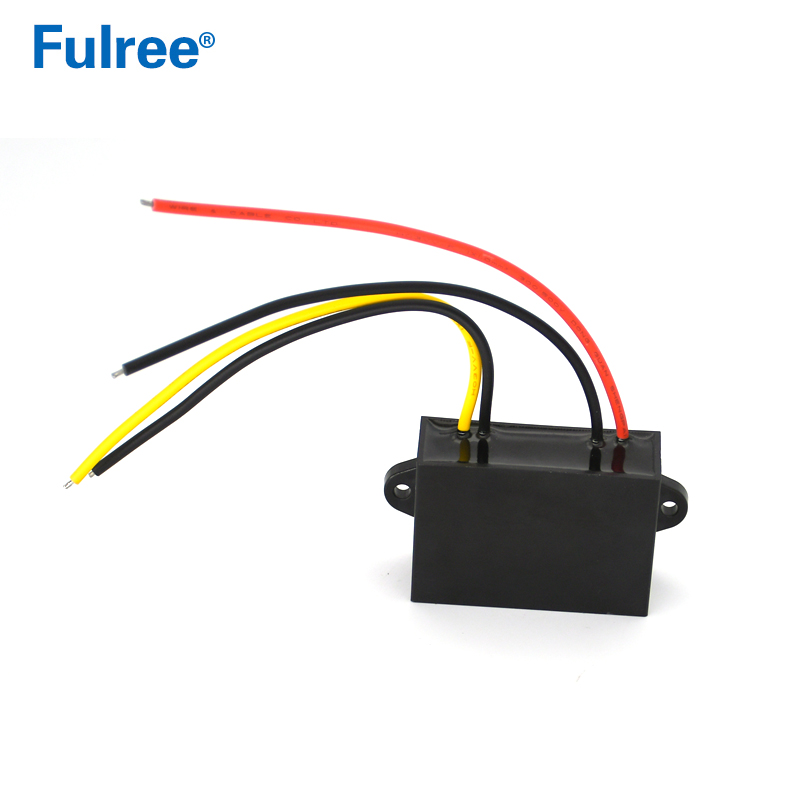

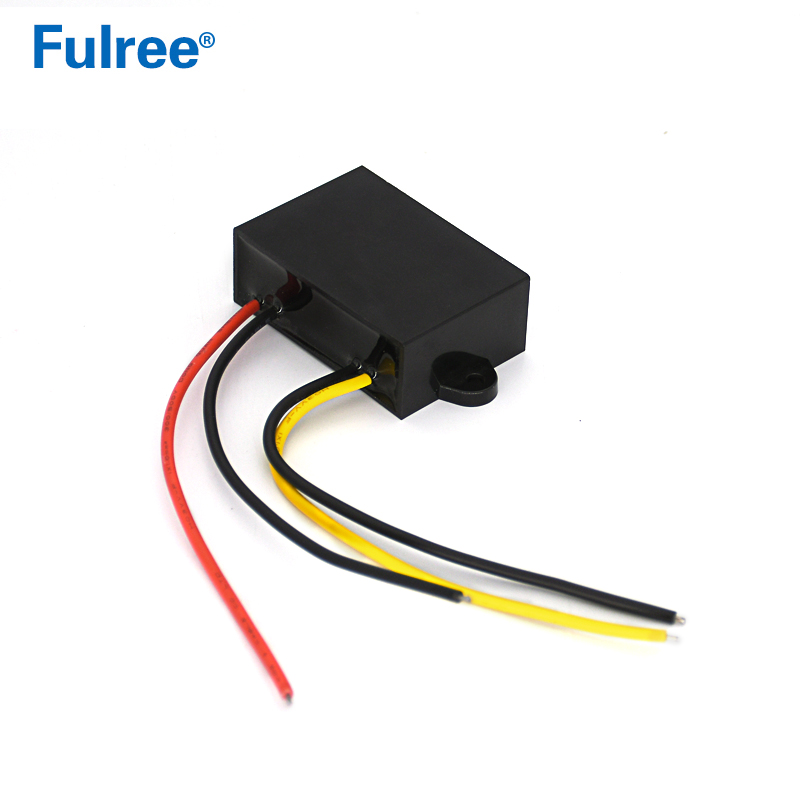

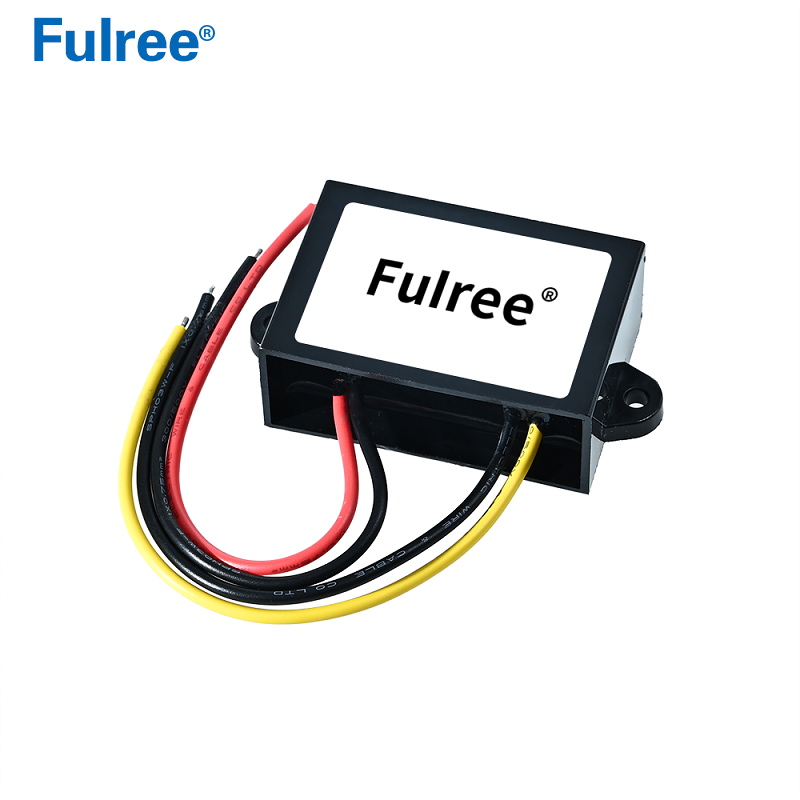

DC 12V to 19V DC 1A 2A 3A Step up Boost Converter Car Notebook Laptop Computer Power Supply 12 Volt to 19 Volt 3 Amps Booster

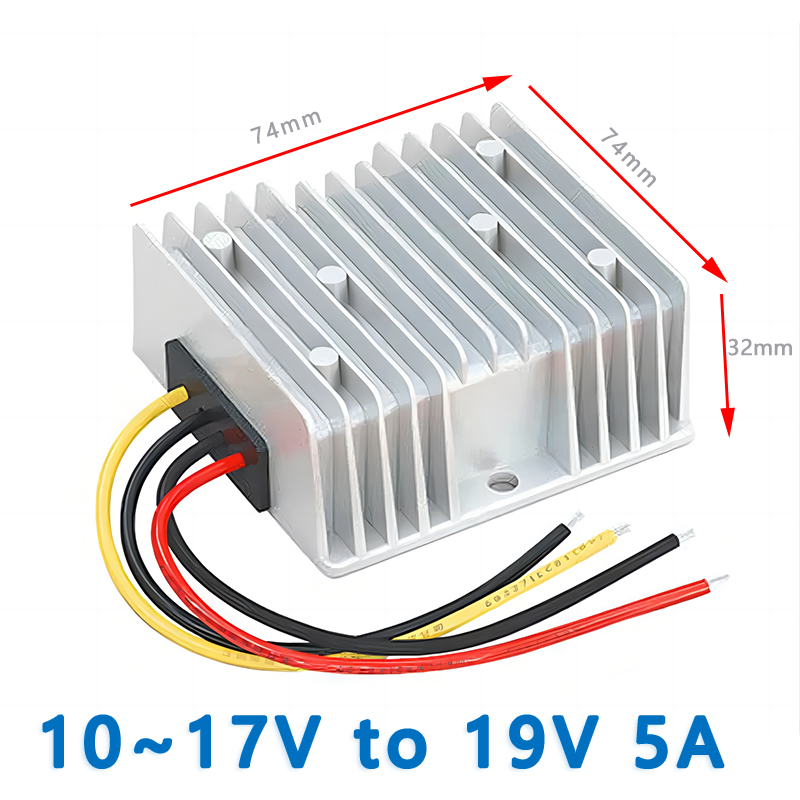

Input DC 12V(10-17V) to Output DC 19v 5A 100W 10A 190W DC to DC converter step up boost module car notebook laptop power supply

Product Name	12v dc to 19v 5A dc converter
Model	1905B
Input rated voltage	12V DC
Input voltage range	10-17V DC
Efficiency	93% (half load), 91% (full load)
Output voltage	19V
Output current	5A MAX
Output rated power	95W
Output peak power	114W
Voltage regulation	< 1%
Load regulation	< 2%
Working temperature	-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Module Properties	non-isolated boost module
Rectification	synchronous rectification
Waterproof rating	IP67
Full load temperature rise:	45°c
Protection	Over-current,Over-temperature Protection
Short-circuit protection	NO, if need pls add fuse on the positive pole on input
Input Reverse Polarity Protection	None (Please Series diode at the input port.)
NW	280G
Product size	747432MM
Other output current option for 12V to 19V	3A, 8A 10A, 15A(pls contact with our sales manager if need)
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged >To assure this converter has the sufficient voltage and power, pls make sure the voltage and power input is enough.

12v dc to 19v 5a dc converter 5a 100w step up boost module car notebook laptop power supply

Product Overviews

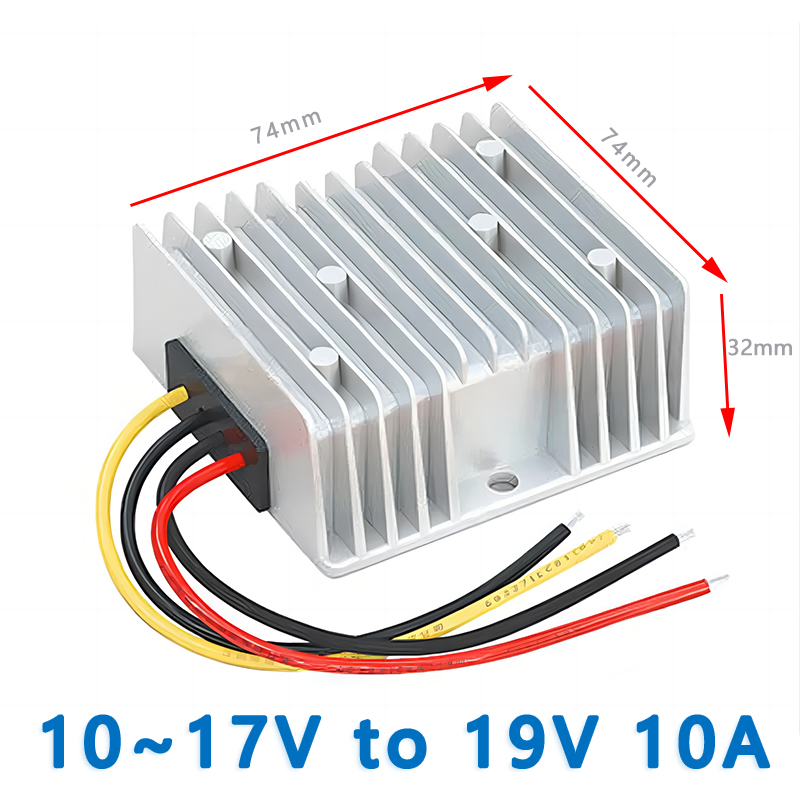

Product Name	12V to 19V 10A DC Converter
Model	1910B
Input rated voltage	DC 12V
Input voltage range	DC 10-17V
Efficiency	93%
Output voltage	DC 19V
Output current	10A MAX
Output rated power	190W
Output peak power	228W
Voltage regulation	< 1%
Load regulation	< 2%
Working temperature	-20°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Module Properties	non-isolate boost module
Rectification	synchronous rectification
Waterproof rating	IP67
Full load temperature rise:	45°c
Protection	Over-current, Over-temperature protection
Input Reverse Polarity Protection	None (Please Series diode at the input port.)
NW	approx 280G
Product size	747432mm
Other output current option for DC 12V TO 19V	3A/5A/8A/15A (pls contact with our sales manager if need)
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged >To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.

Product Picture

Alibaba Online Shopping 12V DC to 19V 10A DC Step Up Converter 12 Volt to 19 Volt Boost Car Laptop Charger
