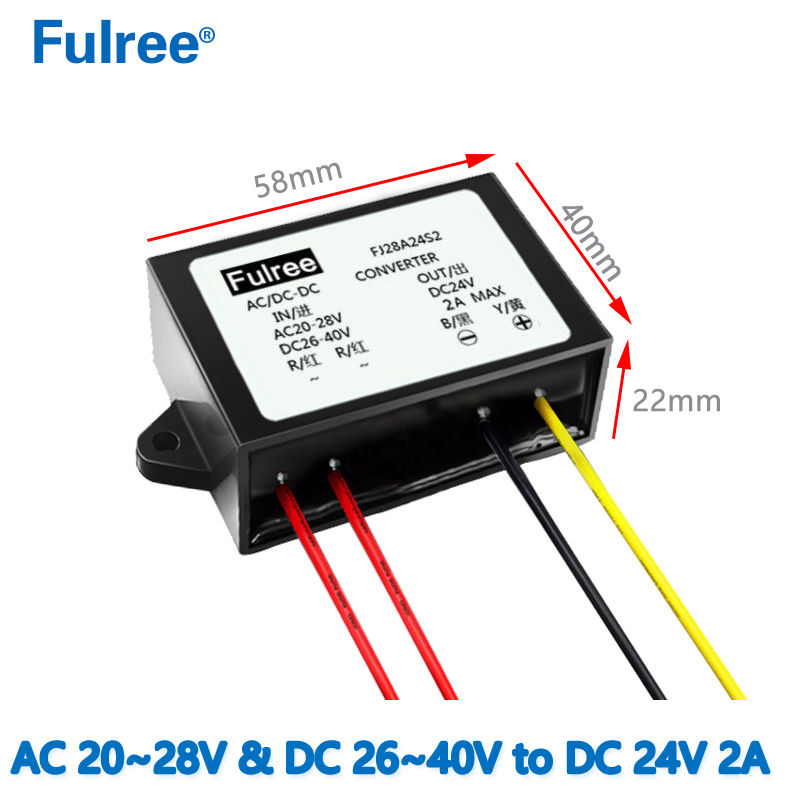

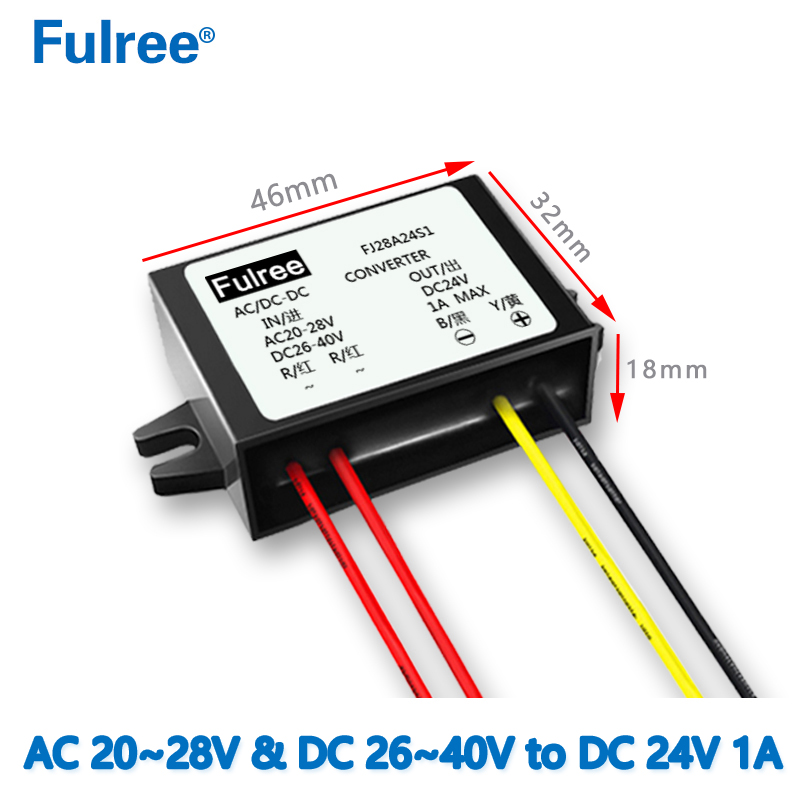

Imput AC20-28V and DC26-40V to DC 24V Output C DC Power Converter 1A/1.5A/2A
|
Product Name |
24vac to 24vdc converter |
|
|
Brand |
Fulree |
|
|
Model No. |
FJ28A24S1/FJ28A24S015/FJ28A24S2 | |
|
Module Properties |
non-isolated module |
|
|
Rectification |
synchronous rectification |
|
|
Input |
||
|
Input Voltage |
AC 24V |
|
|
Input Voltage Range |
AC 20-28V DC 26-40V |
|
|
Output |
||
|
Output Voltage |
DC 24V |
|
|
Output Current |
1A/1.5A/2A |
|
|
Output Power |
24W/36W/48W |
|
|
Conversion Efficiency |
>93% | |
|
Voltage regulation |
±1% |
|
|
Load regulation |
± 2% |
|
|
Ripple (Full load test) |
< 150mV |
|
|
No-load current |
<100mA |
|
|
Working Temperature |
-20~80℃ |
|
|
Waterproof Rating |
IP68 |
|
|
Protection |
Over-current protection |
|
|
Overheat protection |
||
|
Output Short circuit protection |
||
|
Application |
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts GPS Navigation, Monitoring, Air conditioning LED car display, DVD, LED bulb lights Wind Power System, Solar Panel Power System Electrical appliances, water pumps, industrial equipment, telecommunications and so on. |
|
|
Certification |
CE/RoHS/FCC |
|
|
Case Material |
Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on |
|
|
Product Size (L x W x H) |
46*32*18mm/58*40*22mm |
|
|
Product Weight |
45g/100G |
|
|
Warranty |
12 months, lifetime up to 100,000 hours |
|
|
Cooling Way |
Free air convection |
|
|
OEM&ODM Service |
Accept | |

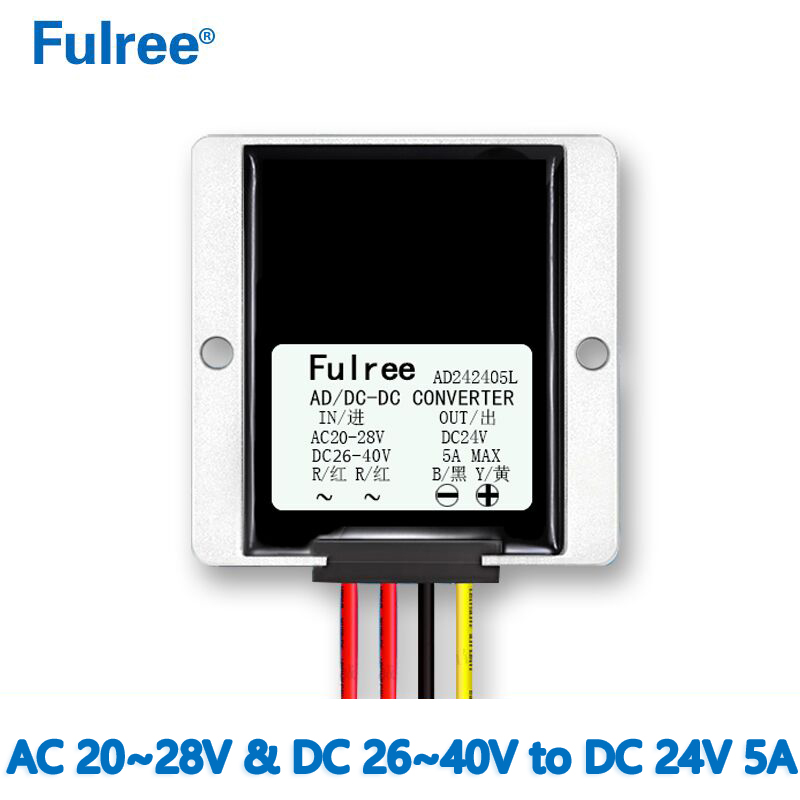

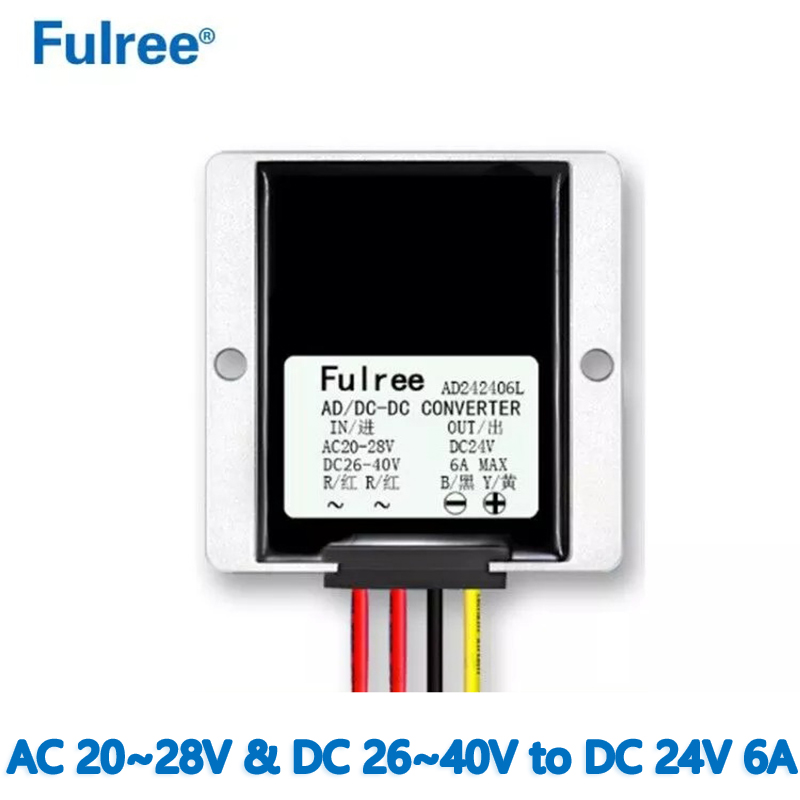

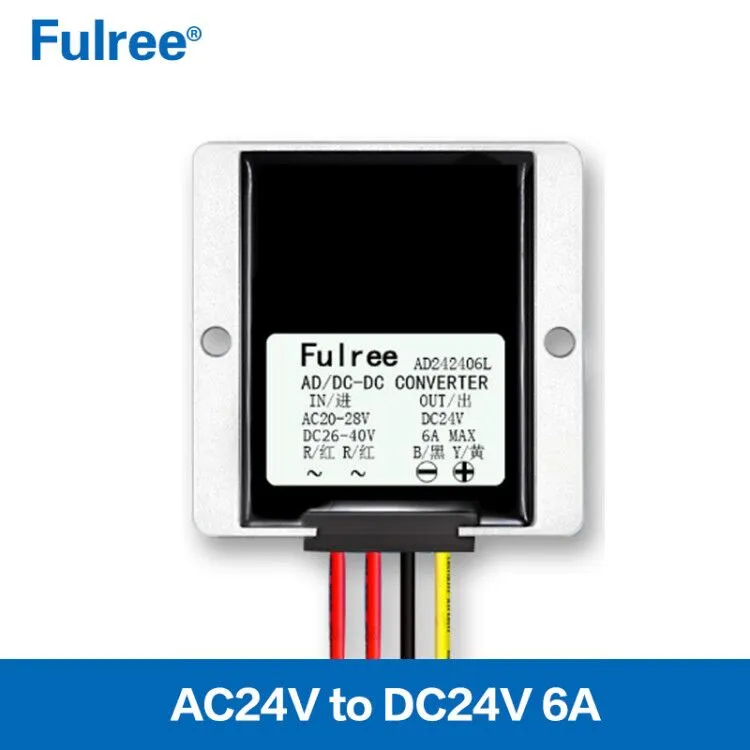

（AC 20-28V & DC 26-40V ）-24V- 3A 5A 6A converter
|
Product Name |
24vac to 24vdc converter |
|
|
Brand |
Fulree |
|
|
Model No. |
AD242406L | |
|
Module Properties |
non-isolated module |
|
|
Rectification |
synchronous rectification |
|
|
Input |
||
|
Input Voltage |
AC 24V |
|
|
Input Voltage Range |
AC 20-28V DC 26-40V |
|
|
Output |
||
|
Output Voltage |
DC 24V |
|
|
Output Current |
3A 5A 6A |
|
|
Output Power |
72W 120W 144W |
|
|
Conversion Efficiency |
>93% | |
|
Voltage regulation |
±1% |
|
|
Load regulation |
± 2% |
|
|
Ripple (Full load test) |
< 150mV |
|
|
No-load current |
<100mA |
|
|
Working Temperature |
-40~80℃ |
|
|
Waterproof Rating |
IP68 |
|
|
Protection |
Over-current protection |
|
|
Low voltage protection |
||
|
Output Short circuit protection |
||
|
Application |
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts GPS Navigation, Monitoring, Air conditioning LED car display, DVD, LED bulb lights Wind Power System, Solar Panel Power System Electrical appliances, water pumps, industrial equipment, telecommunications and so on. |
|
|
Certification |
CE/RoHS/FCC |
|
|
Case Material |
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on |
|
|
Product Size (L x W x H) |
74*74*32mm |
|
|
Product Weight |
280g |
|
|
Warranty |
12 months, lifetime up to 100,000 hours |
|
|
Cooling Way |
Free air convection |
|
|
OEM&ODM Service |
Accept | |
