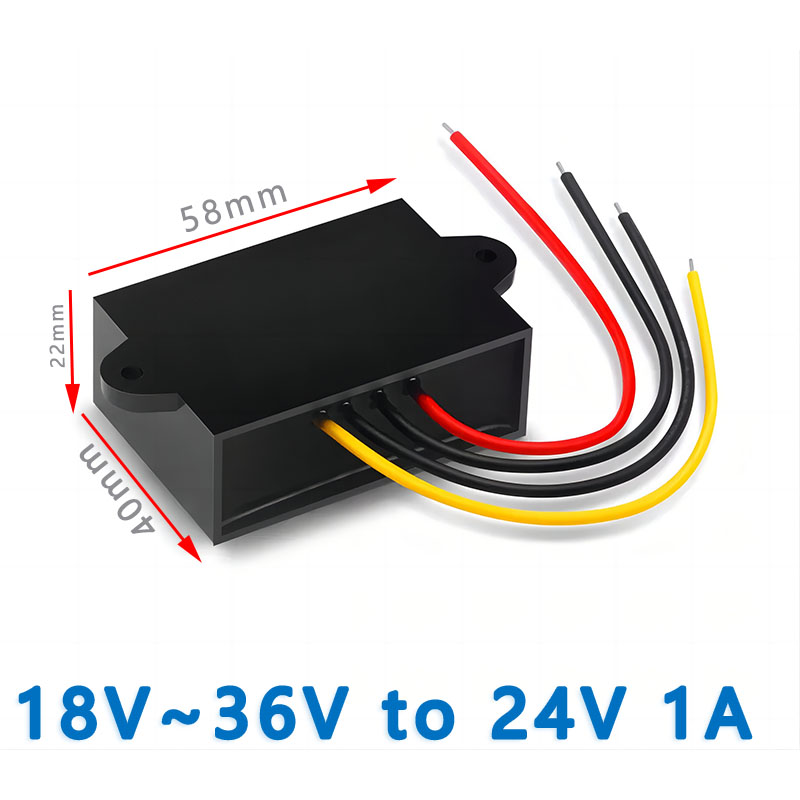

Input DC 24V (18-36V) to Output DC 24V 1A 1.5A plastic shell DC converter
| Product Name |
Input DC 24V (18-36V) to Output DC 24V 1A 1.5A plastic shell DC converter |
| Input rated voltage |
DC 24V (18-36V) |
| Input voltage range |
24V (18-36V) |
| Efficiency |
93% (half load), 91% (full load) |
| Output voltage |
DC24V |
| Output current |
1A /1.5A Max |
| Output rated power |
24W 36W Max |
| Voltage regulation |
< 1% |
| Load regulation |
< 2% |
| Working temperature |
-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,
or to enhance heat dissipation)
|
| Module Properties |
non-isolated boost module
|
| Rectification |
synchronous rectification |
| Waterproof rating |
IP68 |
| Full load temperature rise: |
50°c |
| Protection |
Over-current, Over-temperature,Instant absorption of high voltage protection
waterproof IP68 design, anti-shock protection
|
| Short-circuit protection |
NO, if need pls add fuse on the positive pole on input |
| Input Reverse Polarity Protection |
None (Please Series diode at the input port.) |
| NW |
100G |
| Product size |
58*40*22MM |
|
Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
|

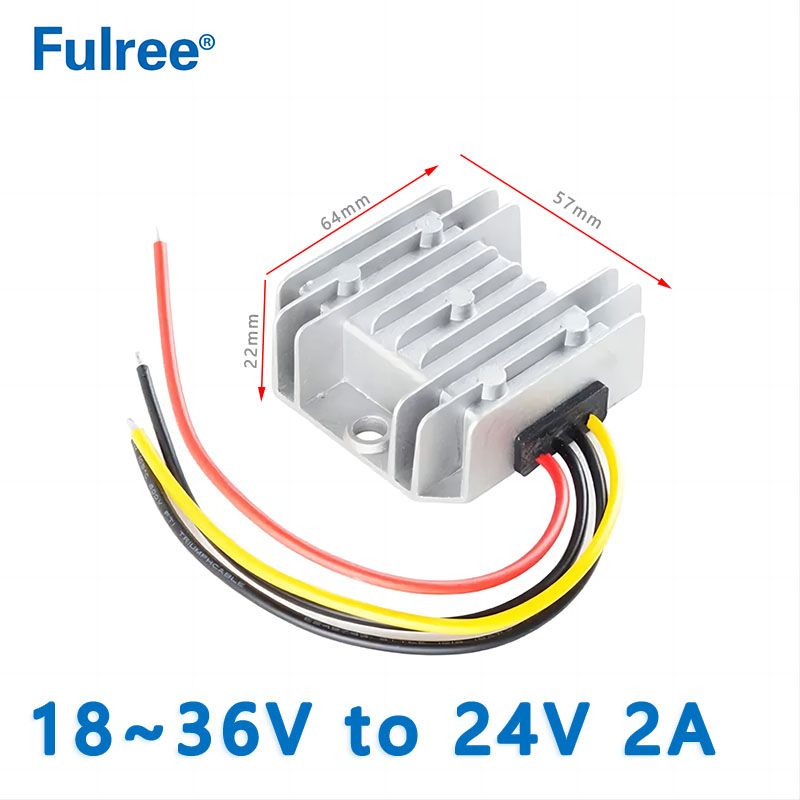

Input DC 24V (18-36V) to Output DC 24V 1A 2A 3A medium aluminum shell DC converter
| Input DC 24V (18-36V)to Output DC 24V 1A 2A 3A medium aluminum shell DC converter |
| Input voltage range |
24V (18-36V) |
| output voltage |
24V |
| Output current |
1A 2A 3A |
| output power |
24~72w |
| Shell material |
Die cast aluminum |
| potting material |
epoxy resin |
| Waterproof grade |
IP68 |
| conversion efficiency |
95% |
| Static power consumption |
10~15ma |
| Wire length |
13-14cm |
| Net weight |
120g |
| Product size |
66*60*22mm |

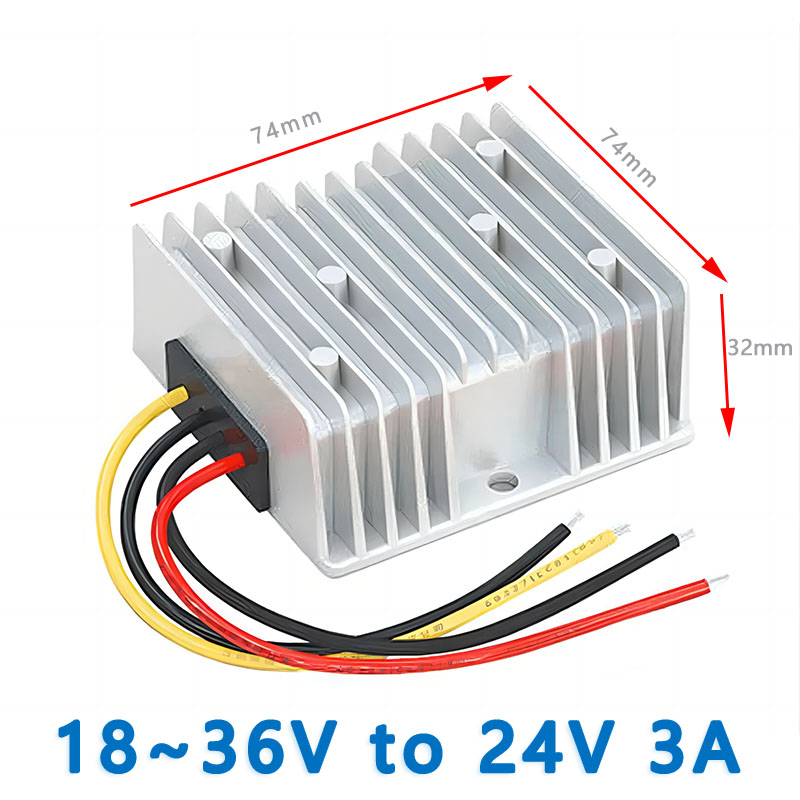

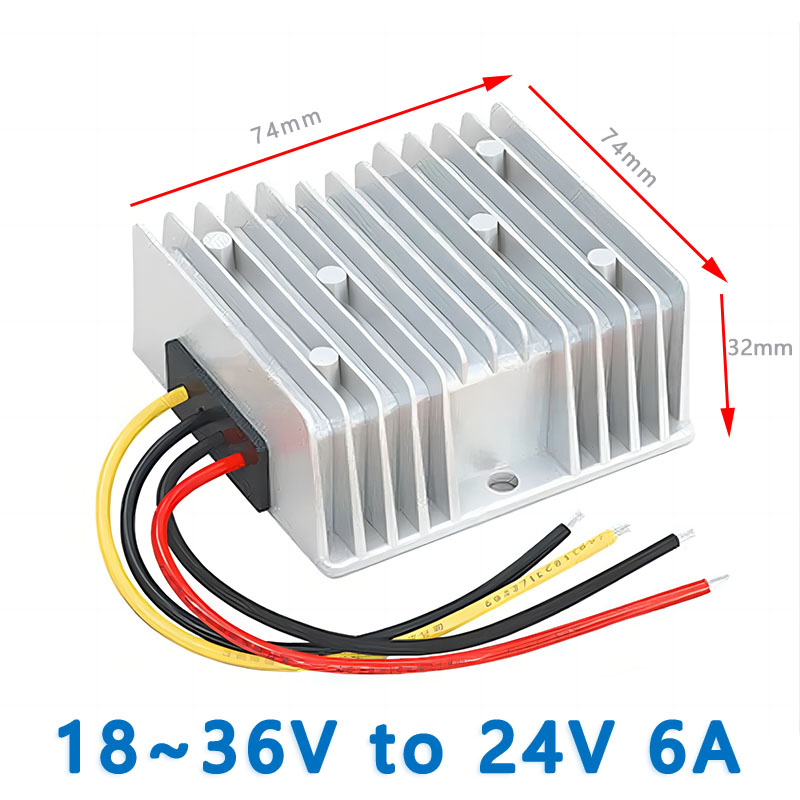

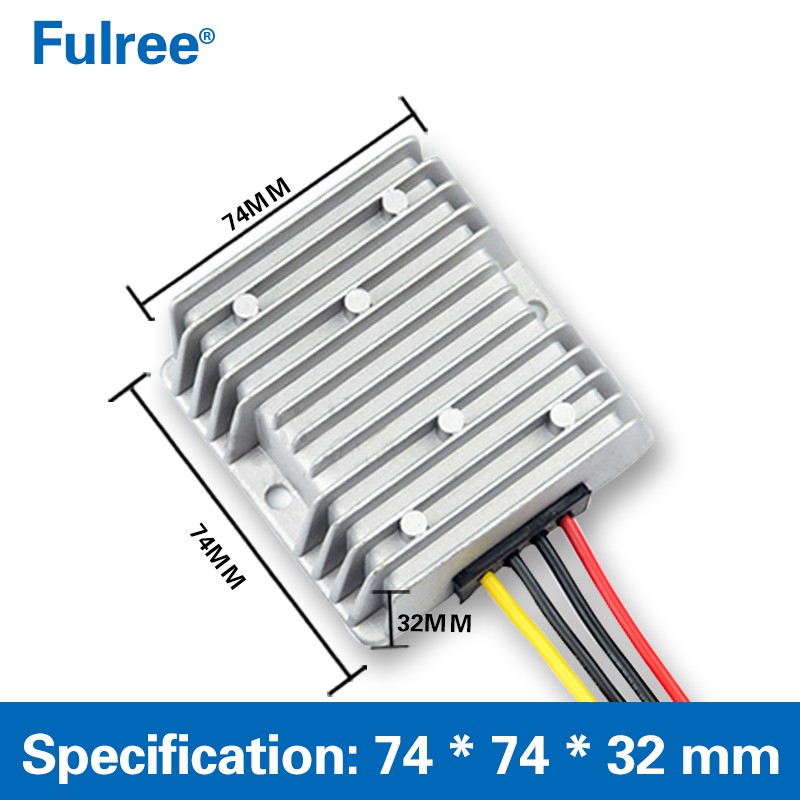

Input DC 24V (18-36V) to Output DC 24V 3A 5A 6A 8A 10A 12A large aluminum shell DC converter
| Model |
F36W24V*A6L |
| Input rated voltage |
DC 24V |
| Input voltage range |
DC 18-36V |
| Efficiency |
96% |
| Output voltage |
DC 24V |
| Output current |
3A / 5A / 6A / 8A / 10A / 12A Max |
| Output rated power |
72W / 120W / 144W / 192W / 240W / 288W Max |
| Voltage regulation |
< 1% |
| Load regulation |
< 2% |
| Working temperature |
-20°c ~+65°c( If ambient temperature exceeds 40°c, lower power use,
or to enhance heat dissipation)
|
| Module Properties |
non-isolate module
|
| Rectification |
synchronous rectification |
| Waterproof rating |
IP67 |
| Full load temperature rise: |
50°c |
| Protection |
Over-current, Over-temperature,Short-circuit protection,
Instant absorption of high voltage protection
|
| Input Reverse Polarity Protection |
None (Please Series diode at the input port.) |
| NW |
approx 280g / 500g |
| Product size |
3A~10A: 74*74*32mm / 10A ~20A:100*80*39mm |
|
Other output voltage
option for DC 12V TO 12V
|
12V to 12V 2A/3A/4A (pls contact with our sales manager if need) |
|
Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
|
Product Picture

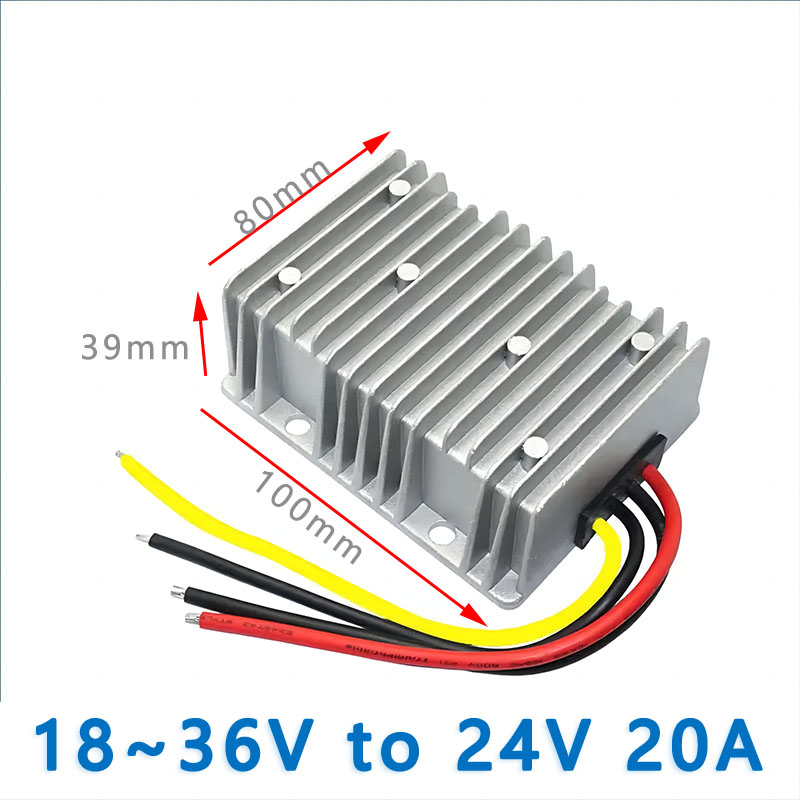

Input DC 24V (18-36V) to Output DC 24V 15A 20A 25A 30A 35A enlarged aluminum shell DC converter
| Input DC 24V (18-36V) to Output DC 24V 15A 20A 25A 30A 35A enlarged aluminum shell DC converter |
| Input voltage range |
24V (18-36V) |
| output voltage |
24V |
| Output current |
15A 20A 25A 30A 35A |
| output power |
360w~840w |
| Shell material |
Die cast aluminum |
| potting material |
epoxy resin |
| Waterproof grade |
IP68 |
| conversion efficiency |
95% |
| Net weight |
0.56KG |
| size |
100*80*39mm |
