High quality Input DC 24V(22V~40V) to Output DC 19V 1A 2A 3A 5A 6A 8A 10A 15A 30A 35A dc to dc Converter
Input DC 24V(22V-40V) to Output DC 19V 1A 2A 3A DC to DC Step Down Converter
Product features:
Multi wire wound iron silicon aluminum magnetic ring inductive energy storage ultra-low impedance high frequency electrolytic capacitor
wave filtering.
Inductance - iron silicon aluminum magnetic ring, high temperature resistant.
Chip, resistor, capacitor and all SMT / process patches have high reliability and stability.
Industrial power supply PWM chip synchronous rectification technology, built-in strong grid drive, adaptive dead time drive control, integrated intelligent protection function
Aviation grade aluminum alloy shell, integrated, super heat dissipation.
It adopts high-quality aviation aluminum radiator and integrated aluminum alloy heat dissipation design, with high thermal conductivity, fast heat dissipation and strong heat dissipation, so as to solve the heat dissipation problem and ensure the service life of the product
Wiring mode
Product application
Widely used: vehicle equipment, communication equipment, power equipment, medical equipment, electric vehicles, LED display cars, ships, aerospace, audio, refrigerators, air conditioners, navigators, routers, surveillance cameras, printers, mobile phone, walkie talkie, robots, transportation systems and various industrial equipment that meets voltage.
parameter
| Product model |
DC 24V(22V-40V) to DC 19V 1A 2A 3A |
| Module properties |
DC-DC non isolated power module |
| input voltage |
DC24V(22V-40V) |
| output voltage |
DC19V |
| Output current |
1A 2A 3A MAX |
| output power |
19~57W |
| conversion efficiency |
95% |

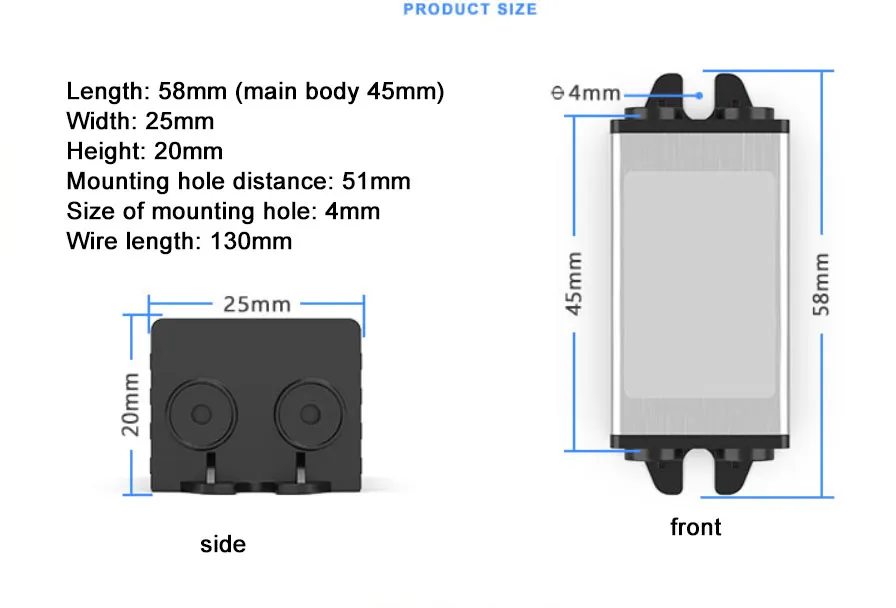

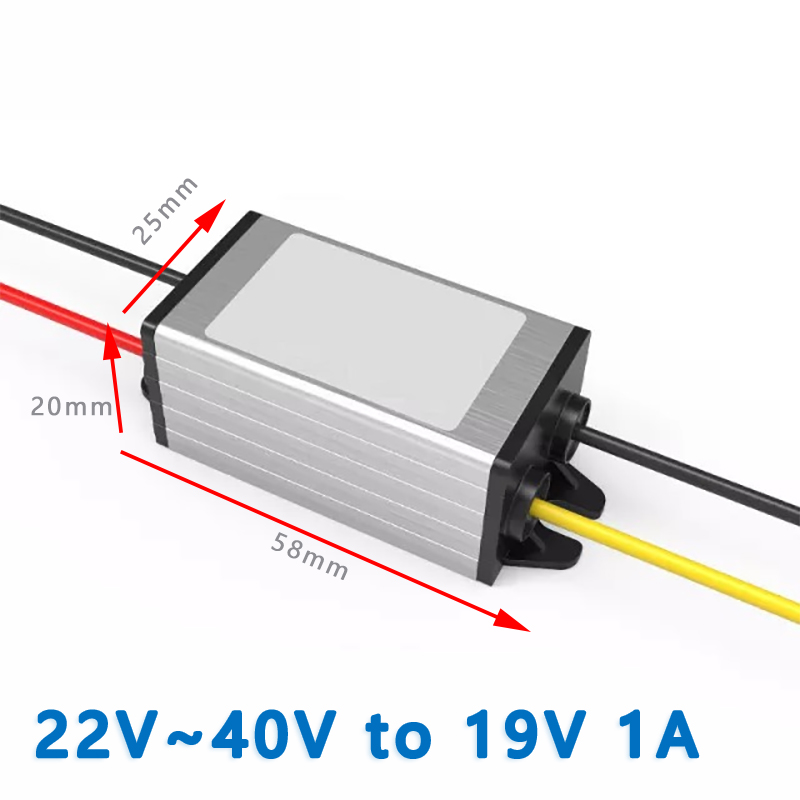

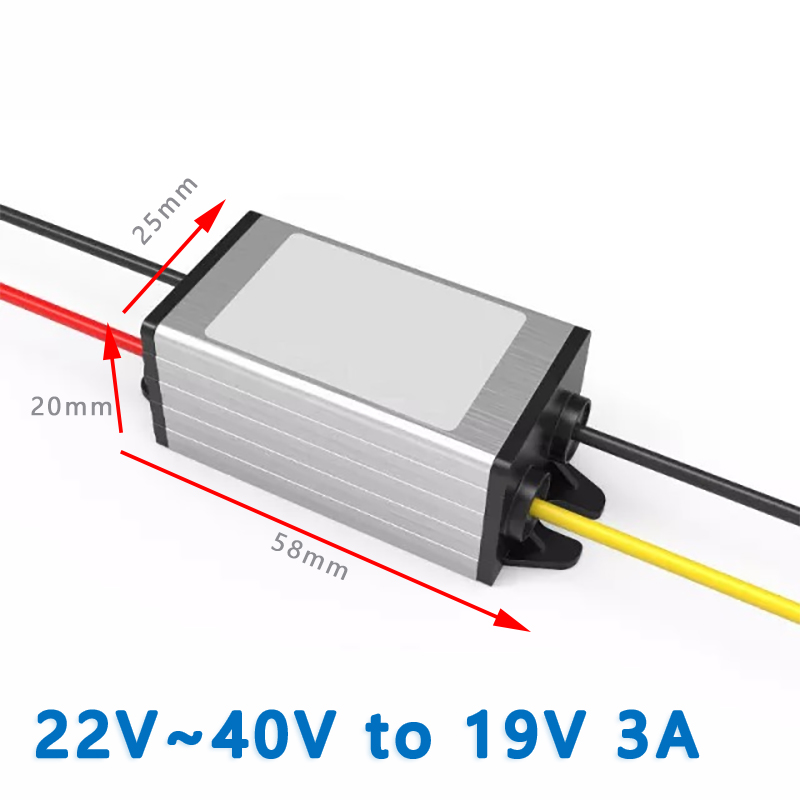

| Overall dimension |
58x24x20mm |
| Net weight |
45g |
| Wire length |
13cm |
| Heat dissipation mode |
Natural heat dissipation |

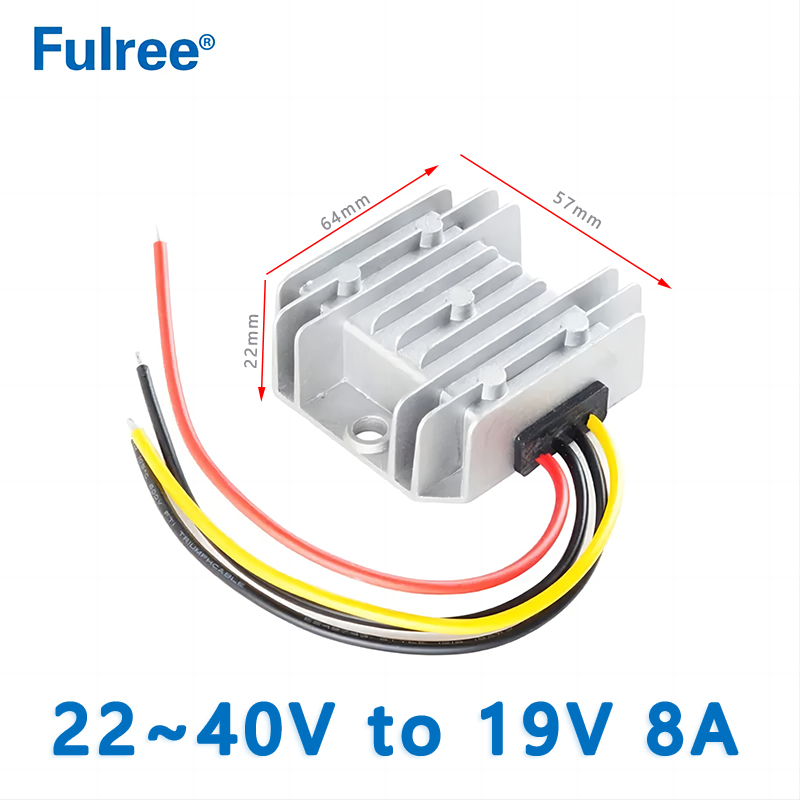

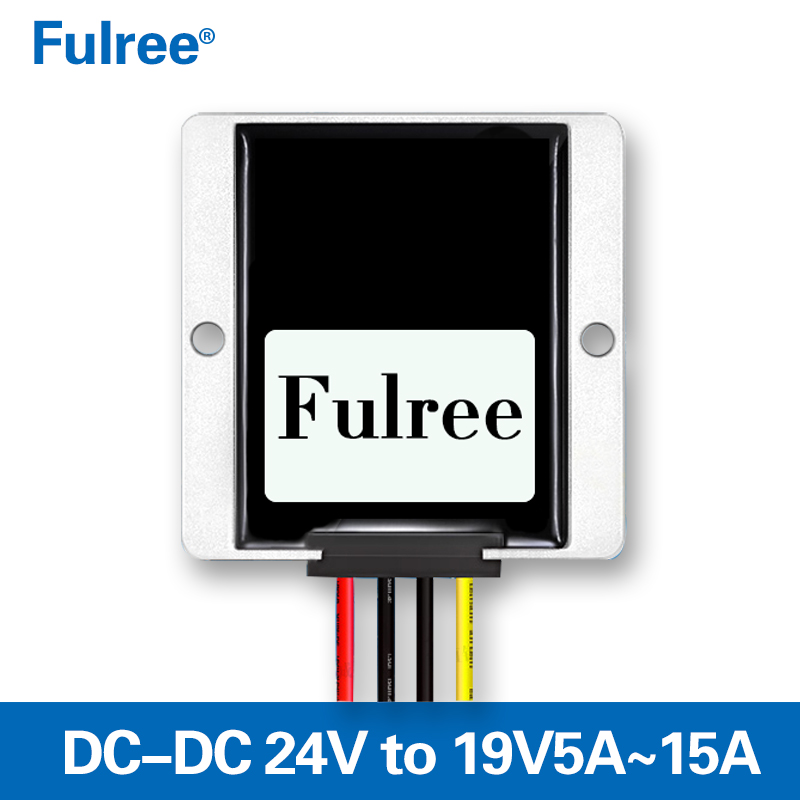

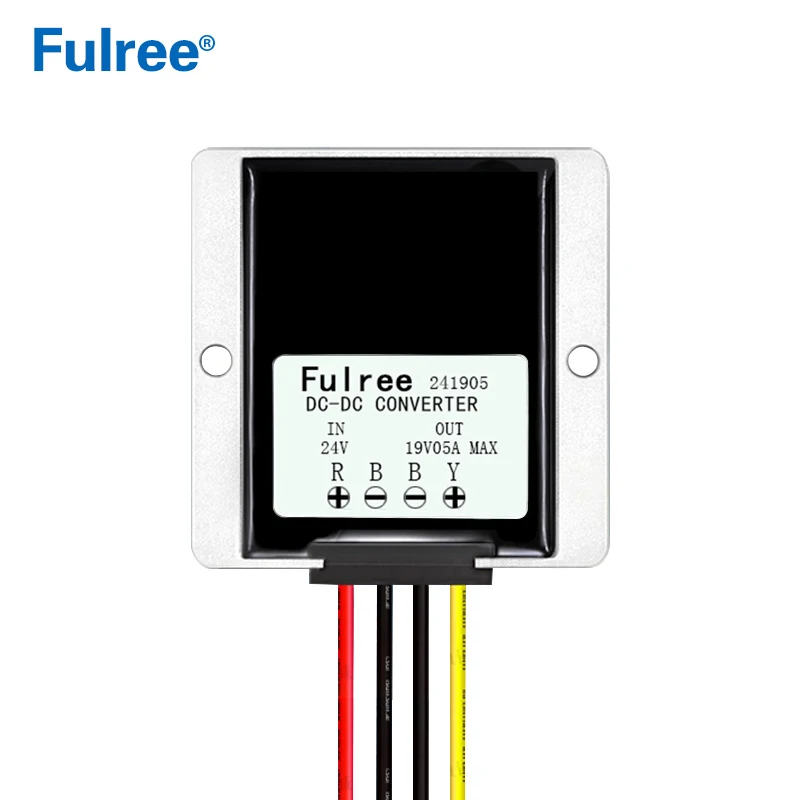

Input DC 24V(22V~40V) to Output DC 19V 5A 8A Buck DC to DC Converter
Product Overviews
| Model |
DC 24V(22V~40V) to DC 19v 5A 8A |
| Input rated voltage |
DC 24V |
| Input voltage range |
DC 22V~40V |
| Efficiency |
96% |
| Output voltage |
19V |
| Output current |
5A 8A |
| Output rated power |
95W 150W |
| Module Properties |
non-isolate module
|
| Rectification |
synchronous rectification |
| Protection |
Over-current, Over-temperature protection,Output Reverse Polarity Protection
|
| Input Reverse Polarity Protection |
None (Please Series diode at the input port.) |
| NW |
approx 100G |
| Product size |
66*60*22mm |
|
Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
|

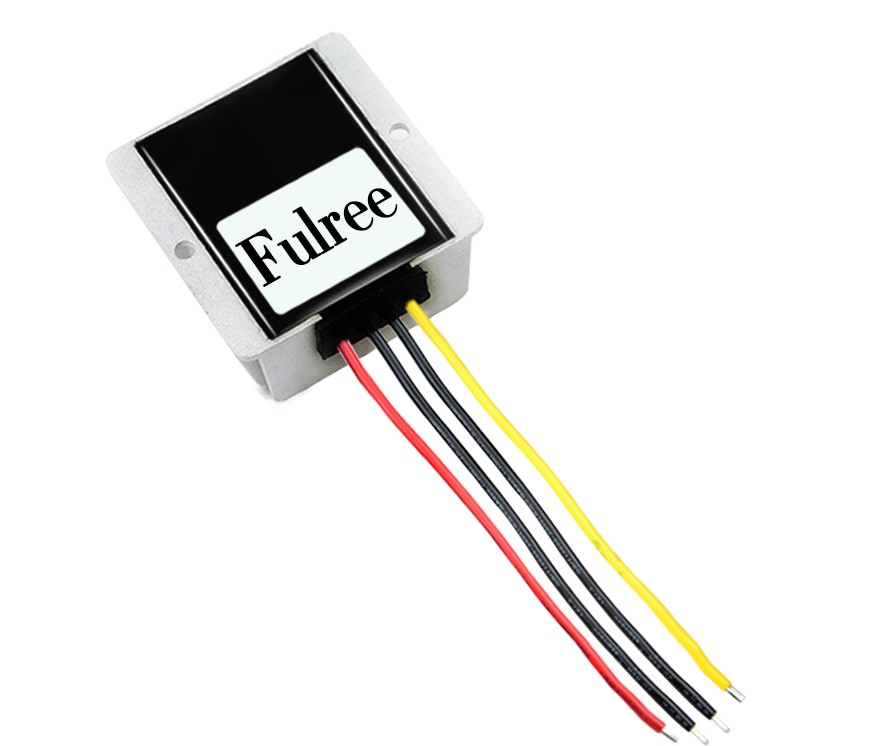

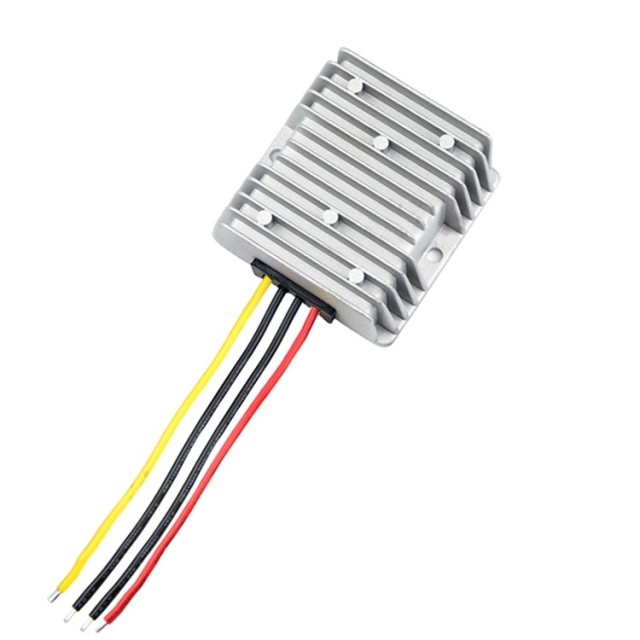

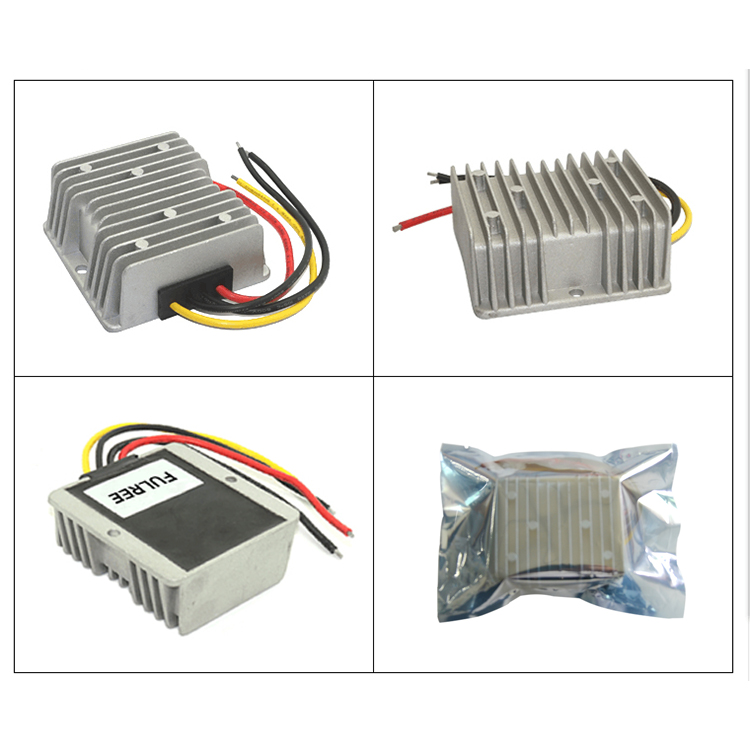

Product Picture

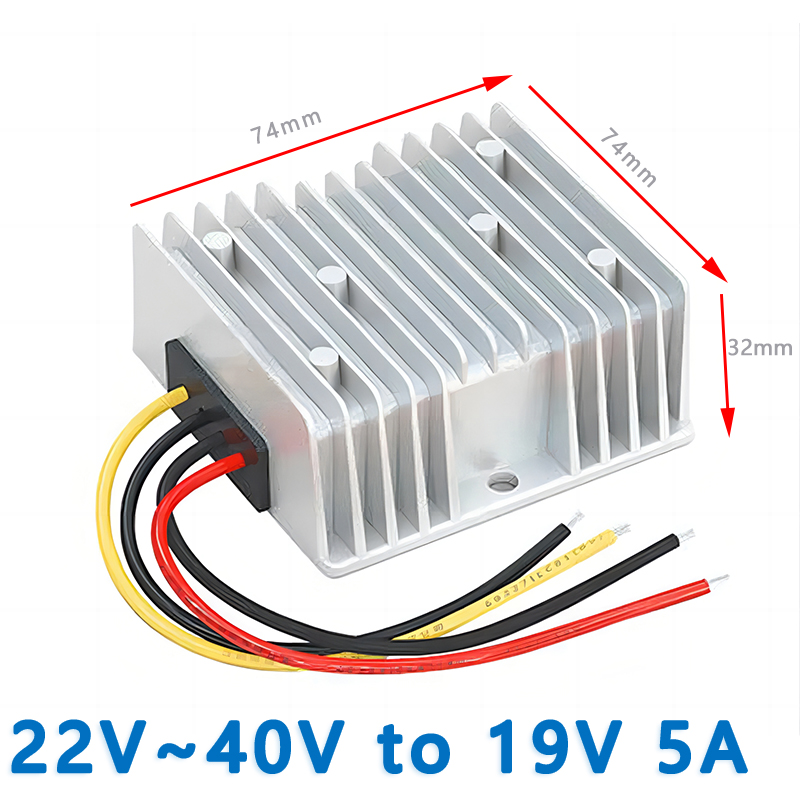

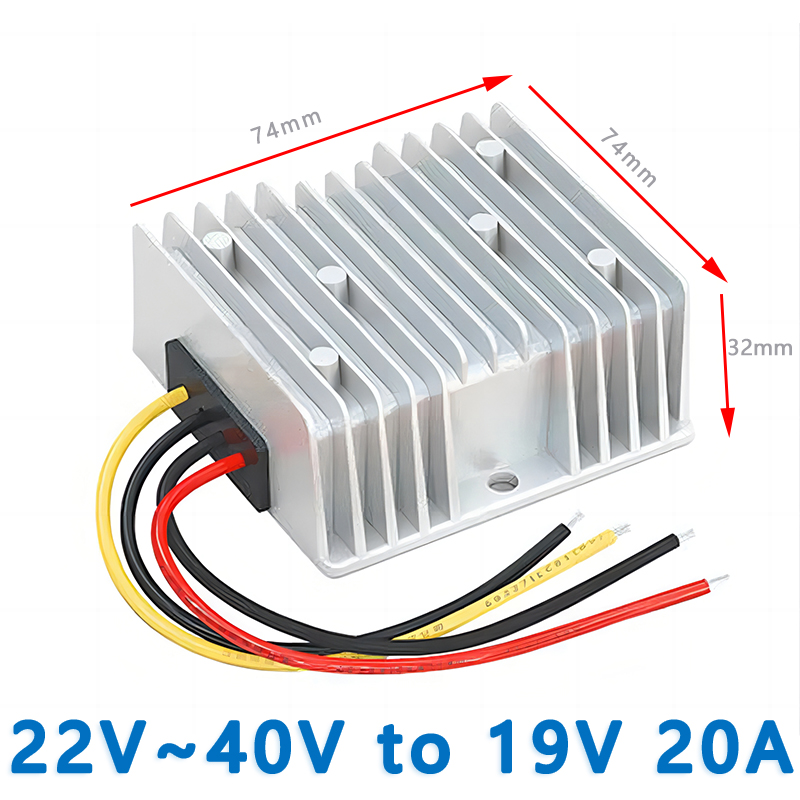

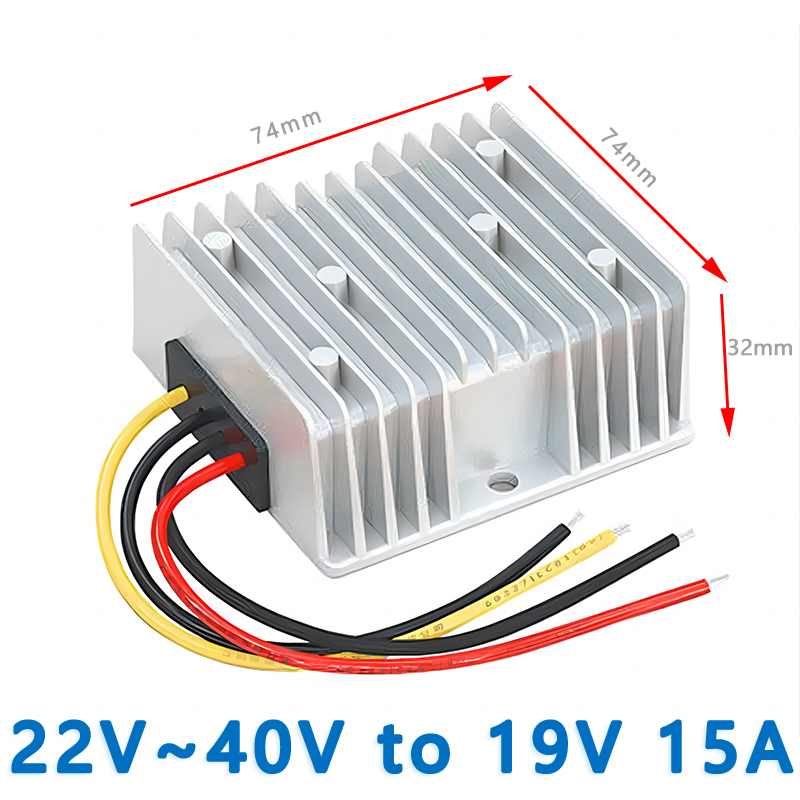

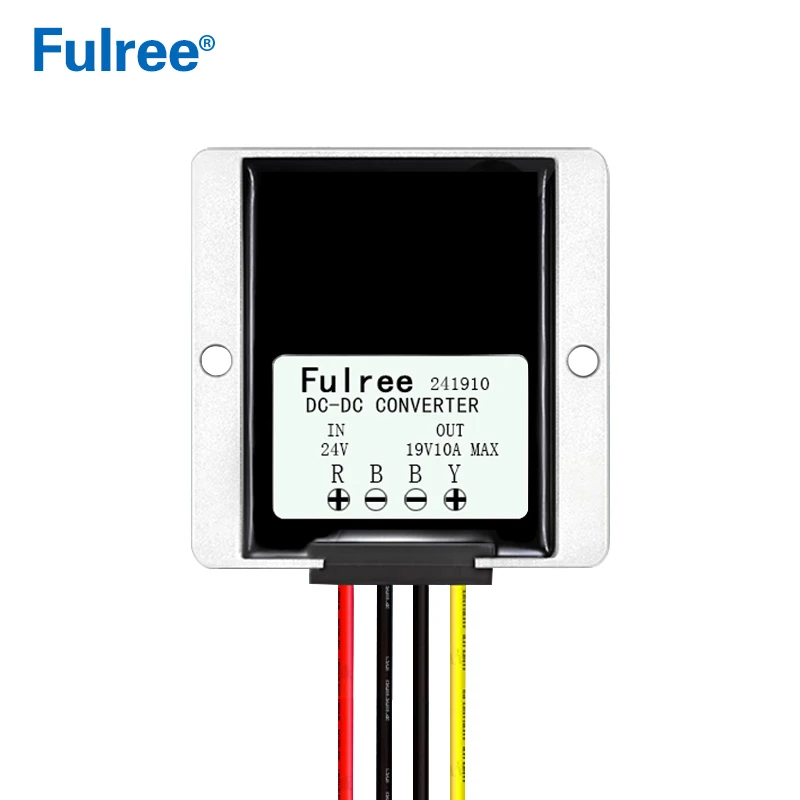

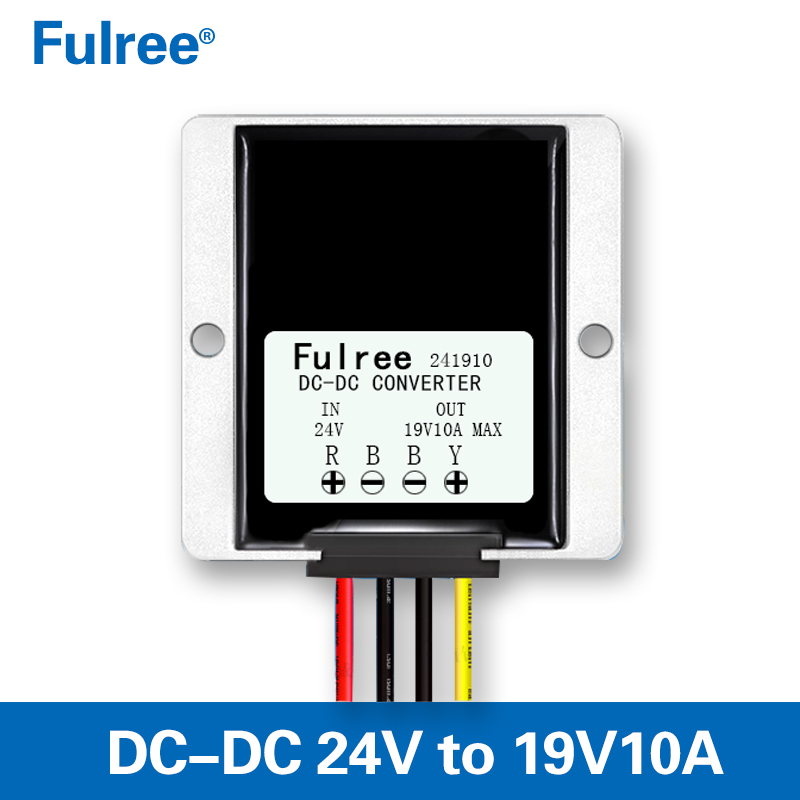

High quality Input DC 24V(22V~40V) to Output DC 19V 5A 6A 8A 10A 15A 20A 25A dc to dc Converter
| Product Name |
24v dc to 19v dc converter |
| Input rated voltage |
DC 24V |
| Input voltage range |
DC 22-40V |
| Efficiency |
96% |
| Output voltage |
DC 19V |
| Output current |
5A / 6A / 8A / 10A / 15A / 20A /25A |
| Output rated power |
95W~475W Max
|
| Voltage regulation |
< 1% |
| Load regulation |
< 2% |
| Working temperature |
-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,
or to enhance heat dissipation)
|
| Module Properties |
non-isolated buck module(buck)
|
| Rectification |
synchronous rectification |
| Waterproof rating |
IP68 |
| Full load temperature rise: |
50°c |
| Protection |
Over-current, Over-temperature, Short-circuit protection,Instant absorption of high voltage protection
Auto-recovery when device is back to normal operating,
waterproof IP68 design, anti-shock protection
|
| Input Reverse Polarity Protection |
None (Please Series diode at the input port.) |
| NW |
280G |

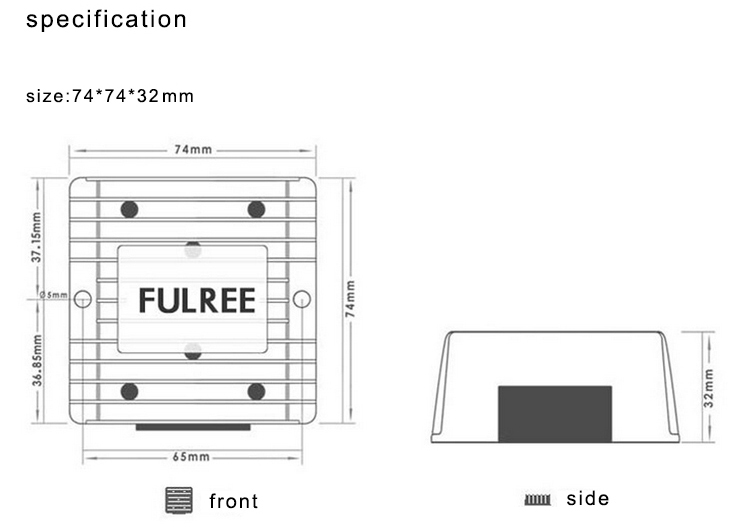

| Product size |
74*74*32MM |
|
Other output current
option for 24v to 19v
|
10A, 15A(pls contact with our sales manager if need) |
|
Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power, pls make sure the voltage and power input is enough.
|

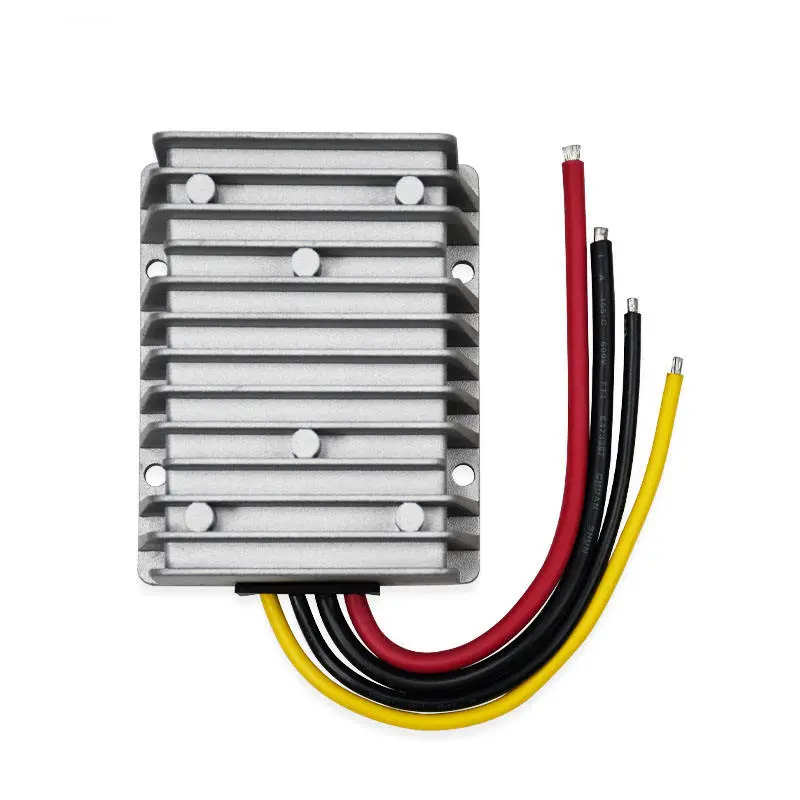

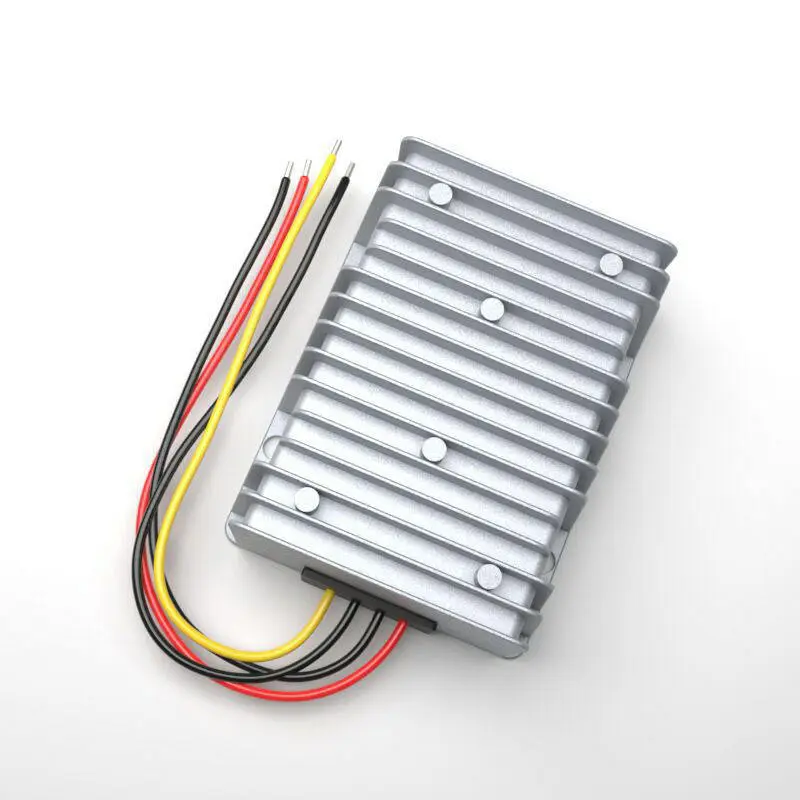

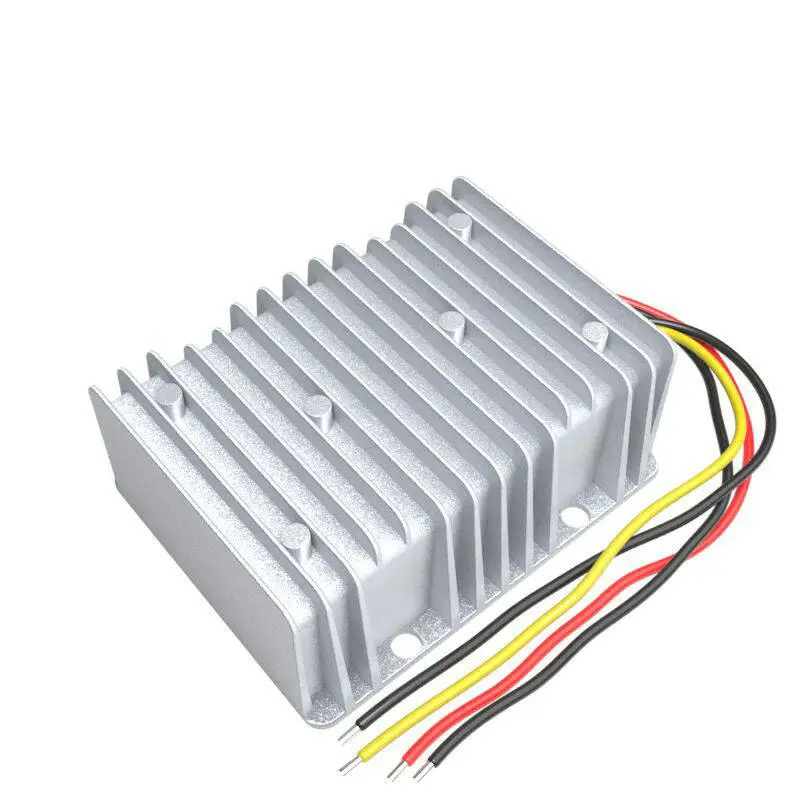

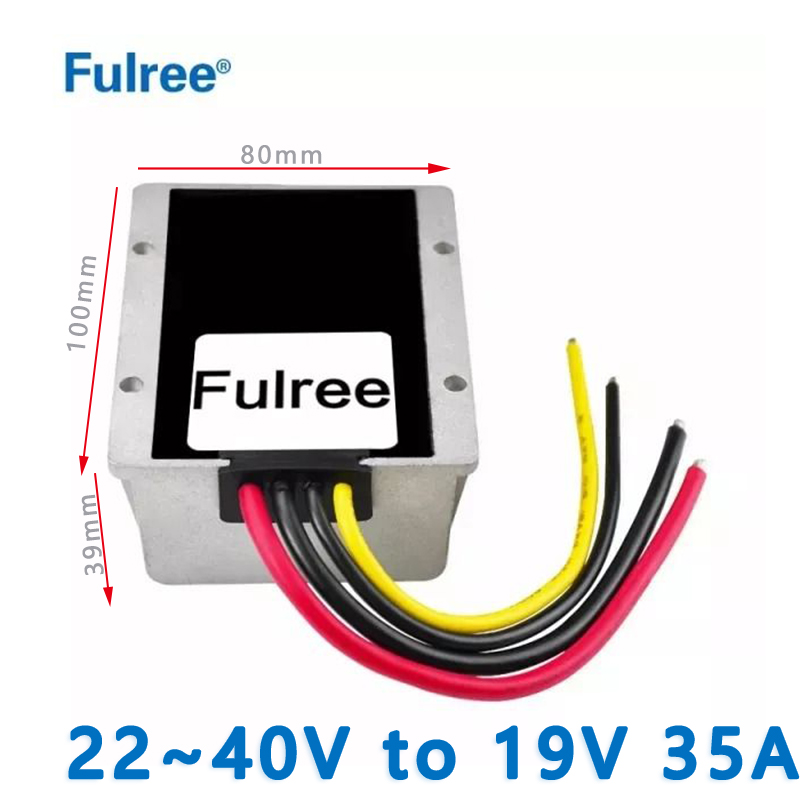

High quality Input DC 24V(22V~40V) to Output DC 19V 30A 35A dc to dc Converter
| Product model |
DC 24V(22V~40V) to DC 19V 30A 35A |
| Input voltage |
24V(22V~40V) |
| Output voltage |
DC19V |
| Output current |
30A 35A |
| conversion efficiency |
96% |

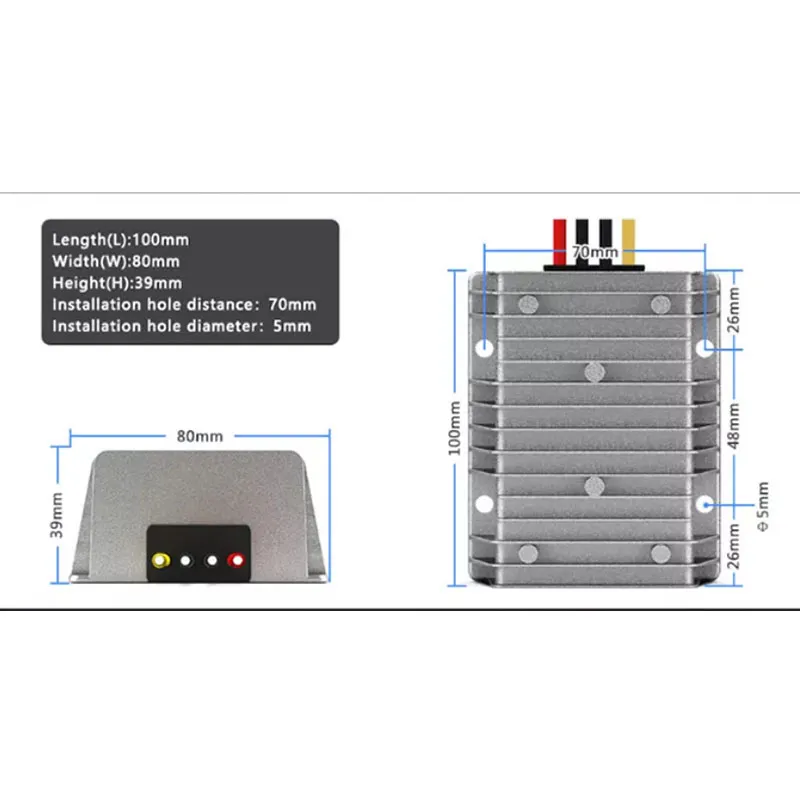

| Overall dimension |
100*80*38mm |
| Weight |
500g |
