Input DC 24V (17-35V) to Output DC 12V 3A / 5A Max Step Down DC to DC Converter 5.5 X 2.1mm Jack Adapter Connector Plug CCTV Camera
Product Description
|
Product Name
|
Fulree 24V DC TO 12V DC Converter Module
|
|
Brand
|
Fulree
|
|
Model No.
|
F35J12V*A3S-DC / F35J12V*A11S-DC
|
|
Module Properties
|
non-isolated buck module
|
|
Rectification
|
synchronous rectification
|
|
Input
|
|
Input Voltage
|
DC 24V
|
|
Input Voltage Range
|
DC 17~35V
|
|
Output
|
|
Output Voltage
|
DC 12V
|
|
Output Current
|
3A / 5A Max, auto-adaption
|
|
Output Power
|
36W / 60W Max
|
|
Conversion Efficiency
|
92%
|
|
Voltage regulation
|
±1%
|
|
Load regulation
|
± 2%
|
|
Ripple (Full load test)
|
< 100mV
|
|
No-load current
|
< 100mA
|
|
Working Temperature
|
-20~65℃
|
|
Waterproof Rating
|
non-waterproof for 55*35*22mm / IP68 for 58*40*22mm
|
|
Protection
|
Overheat Protection
|
|
Short circuit Protection
|
|
Input/Output Reverse Polarity Protection
|
No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive
|
|
Application
|
GPS Navigation, Monitoring,
Electrical appliances, industrial equipment and so on.
|
|
Certification
|
CE/RoHS
|
|
Case Material
|
Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on
|
|

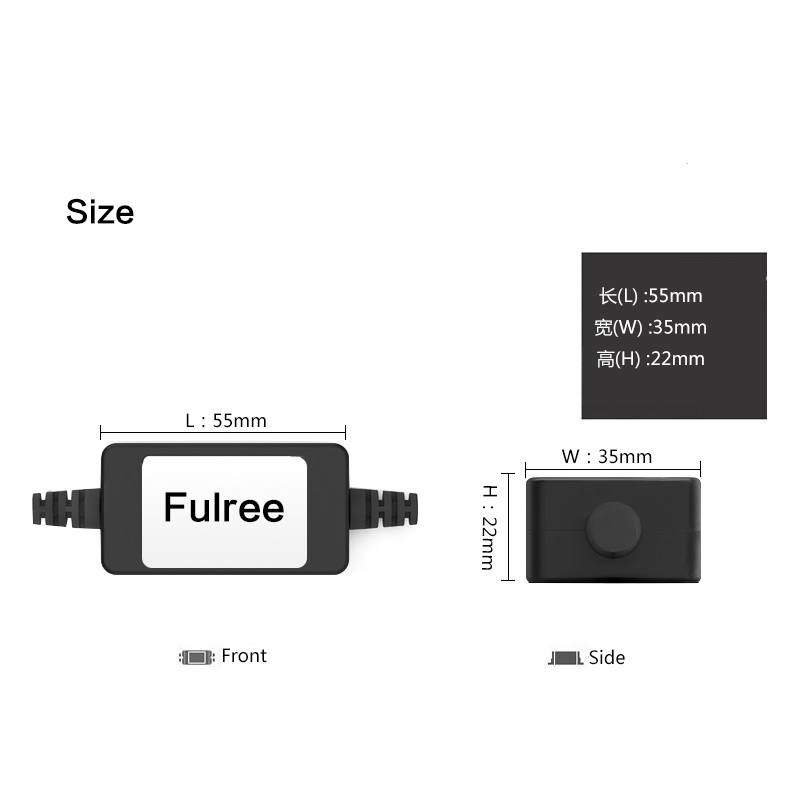

Product Size (L x W x H)
|
55*35*22mm / 58*40*22mm
|
|
Installation Cable Length
|
Input: 13-14CM / Output:35CM
|
|
Product Weight
|
55*35*22mm---55g / 58*40*22mm---100g
|
|
Warranty
|
12 months, lifetime >20,000 hours
|
|
Cooling Way
|
Free air convection
|
|
Customized Service
|
Accept customized converter such as input/output voltage, cable, interface and etc, Contact Fulree Now!
|

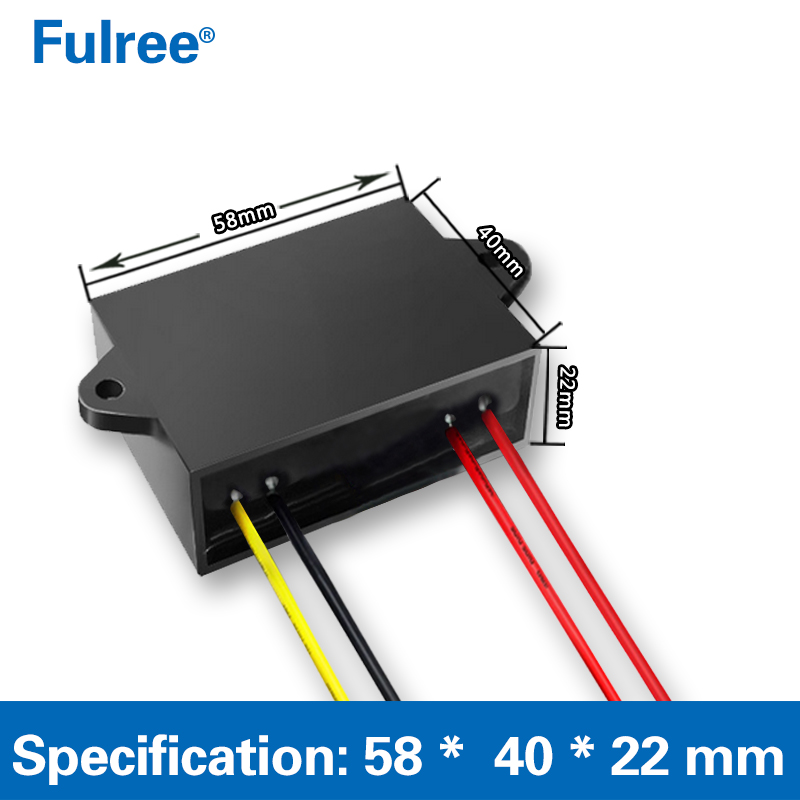

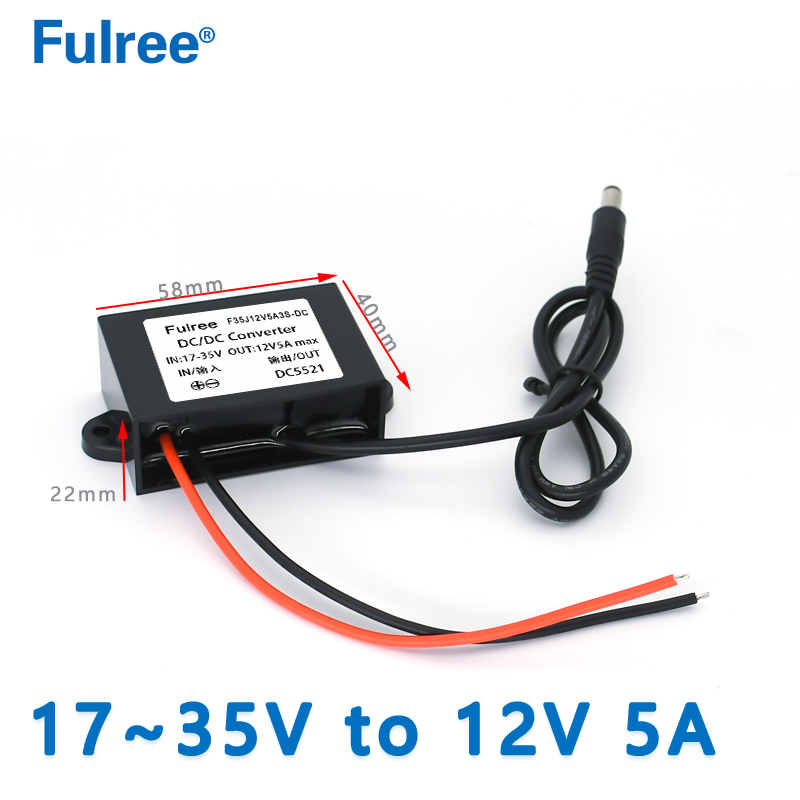

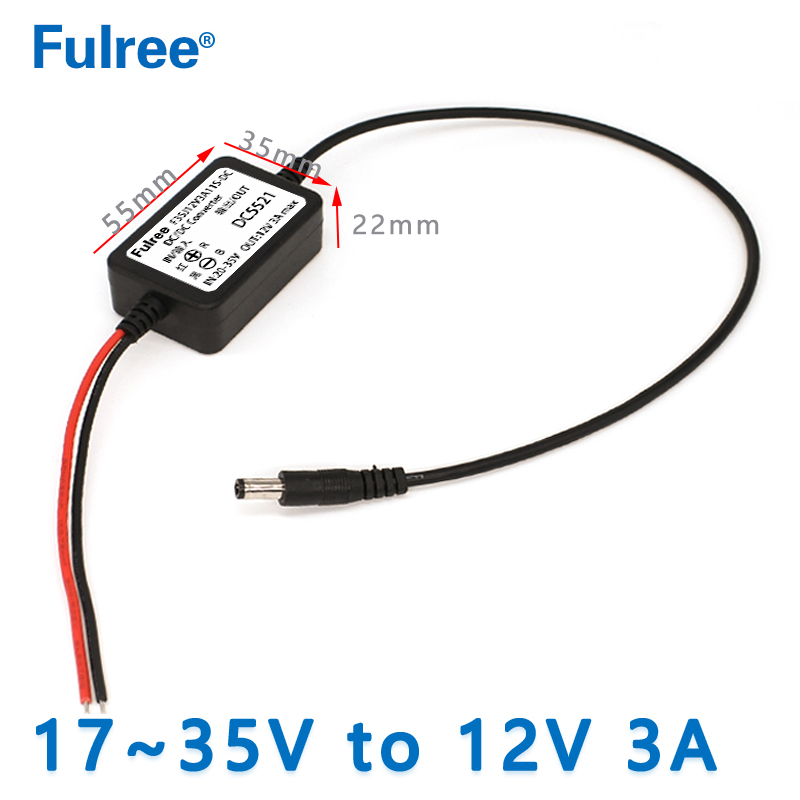

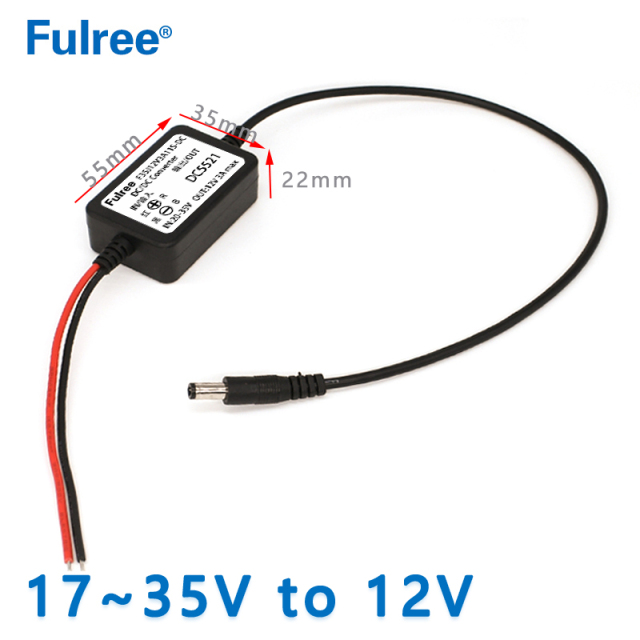

Product Picture
