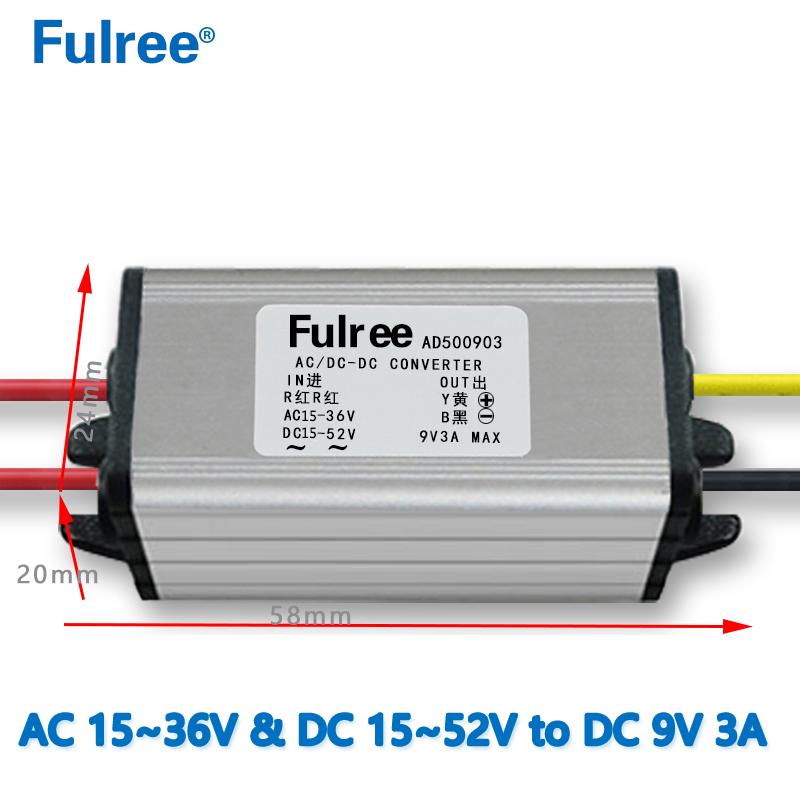

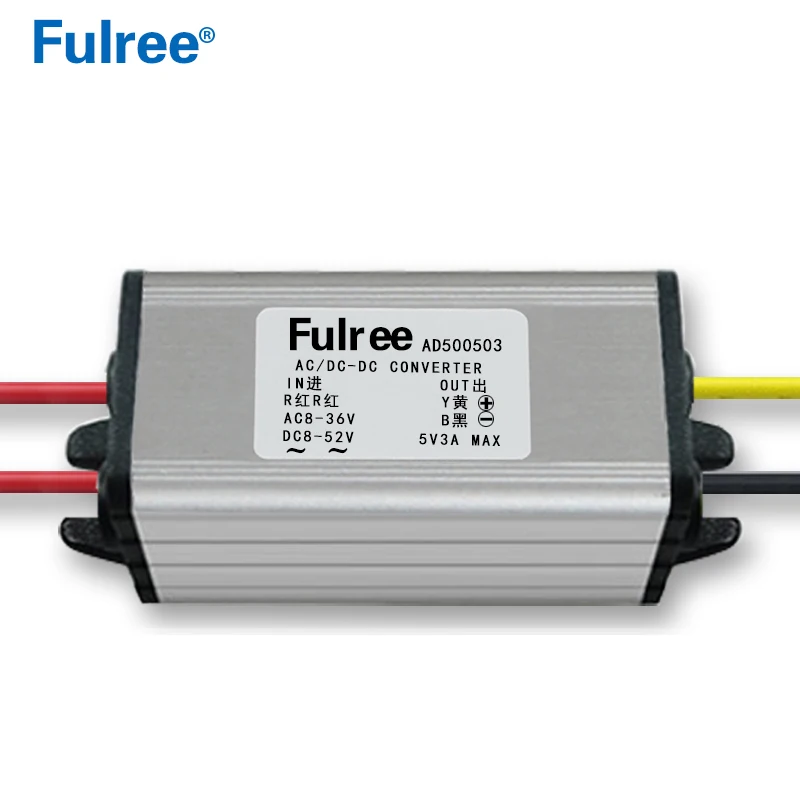

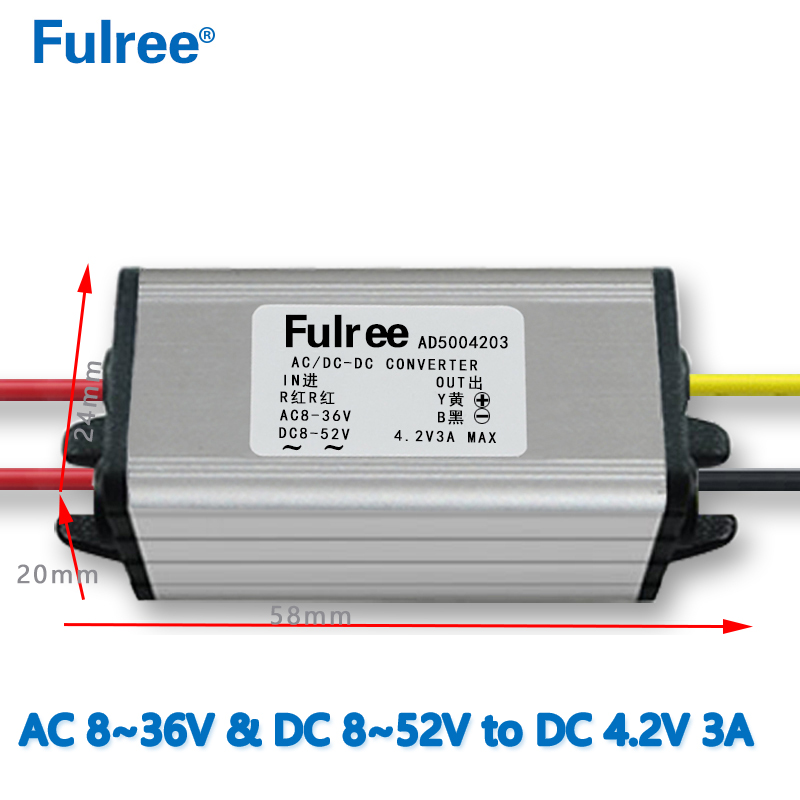

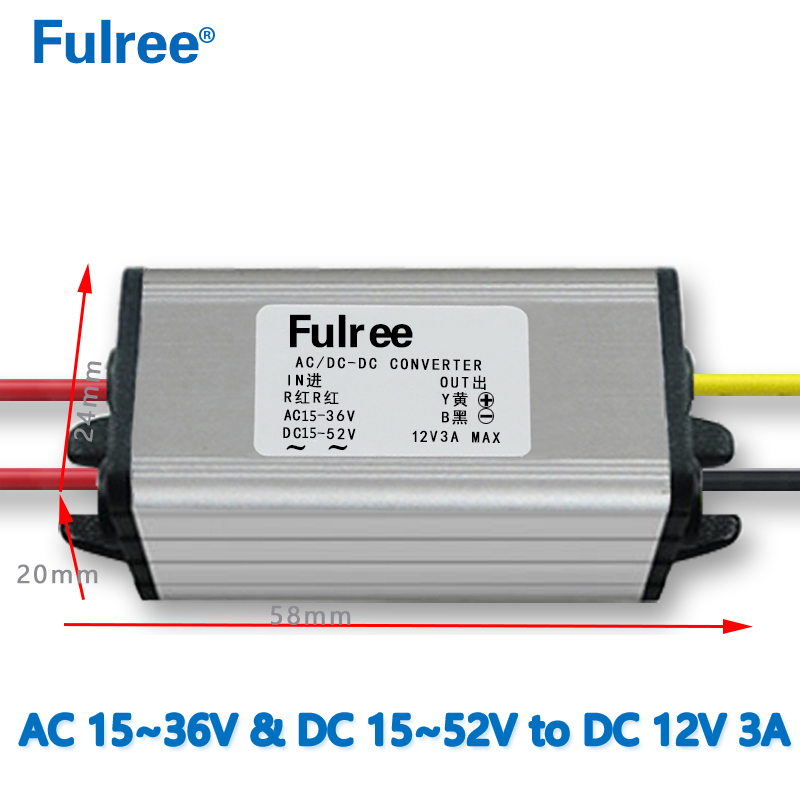

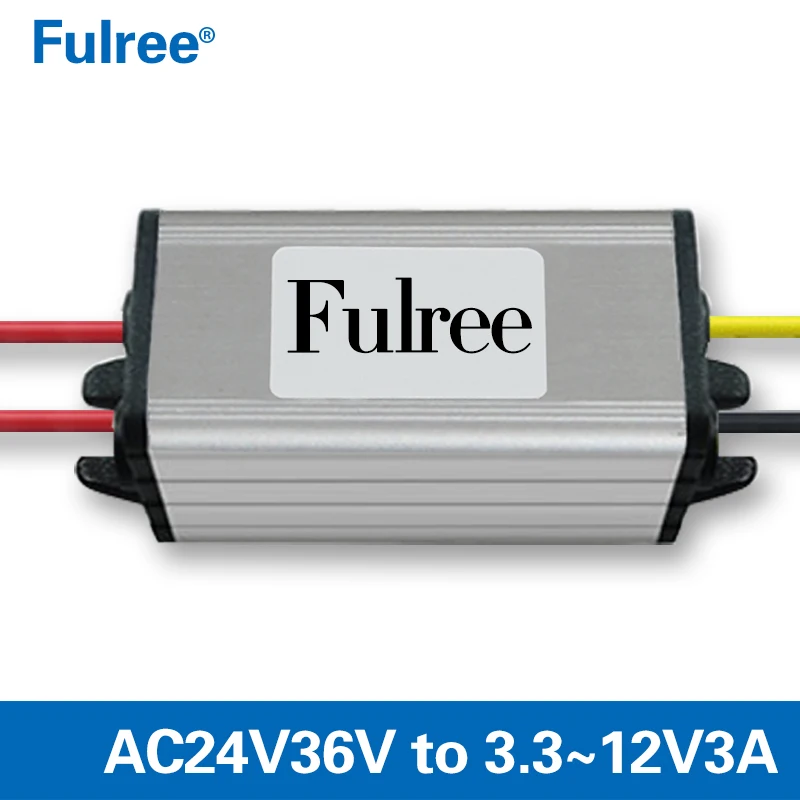

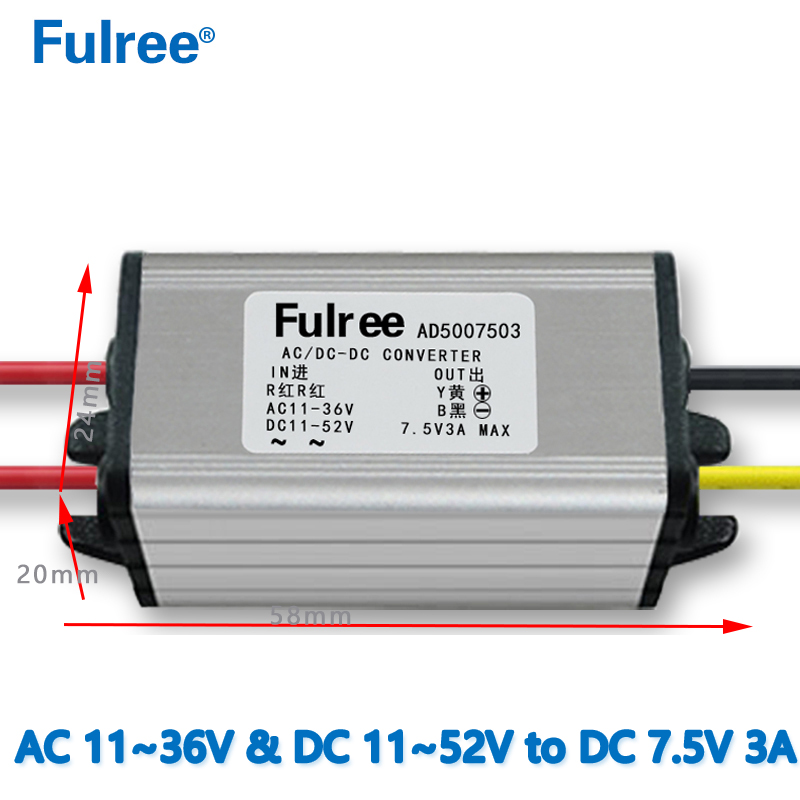

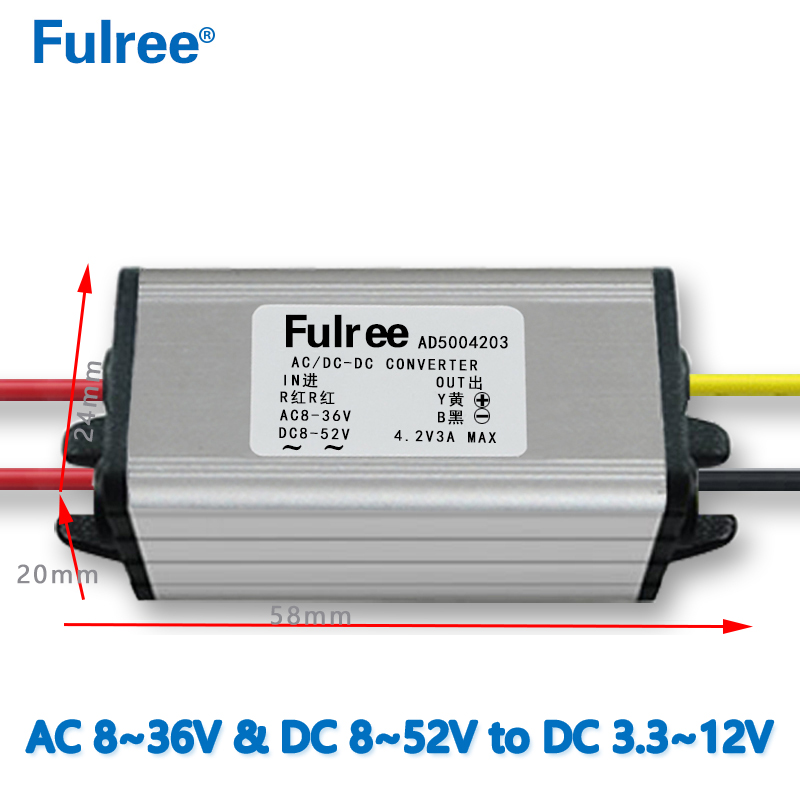

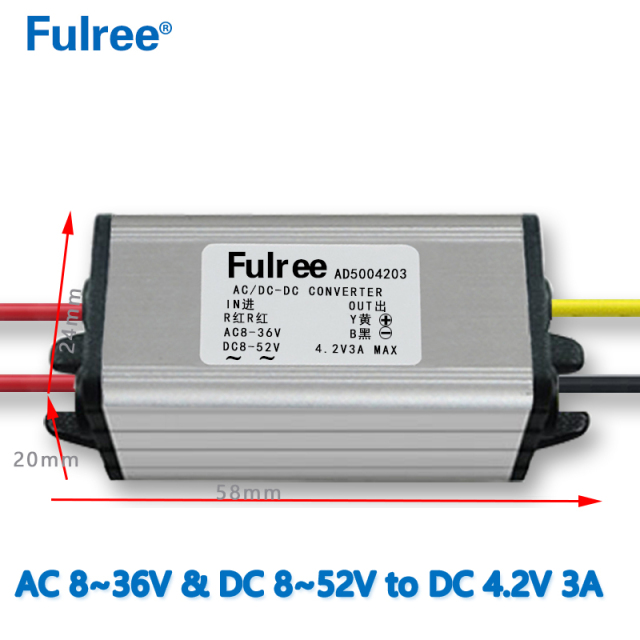

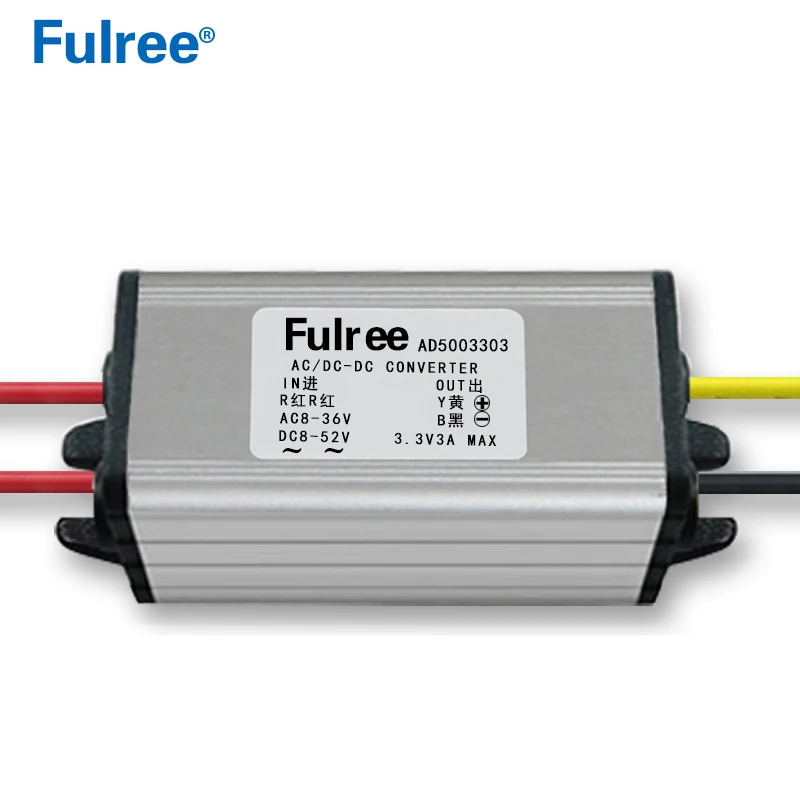

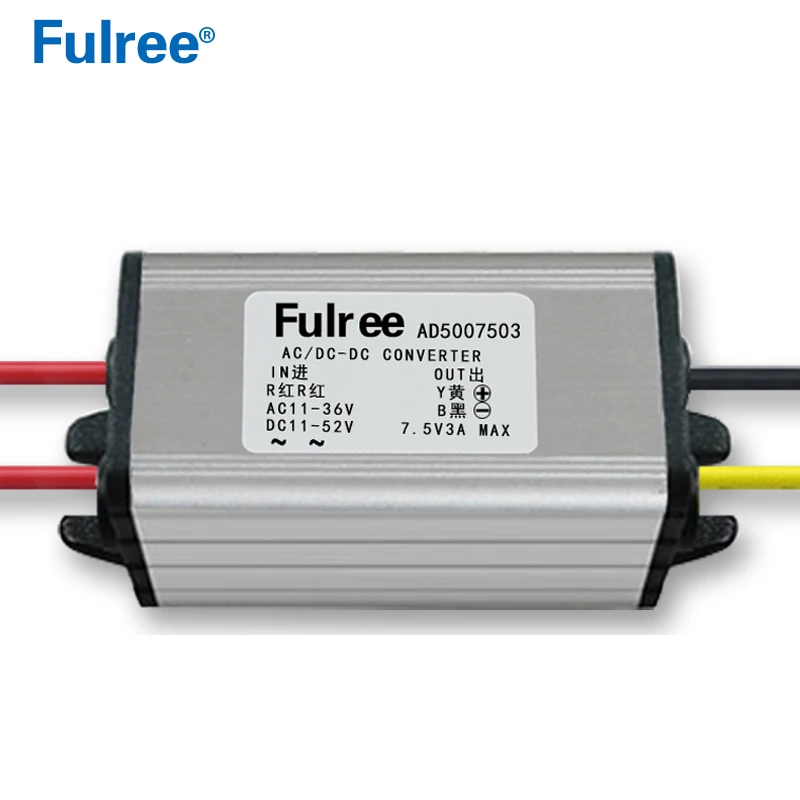

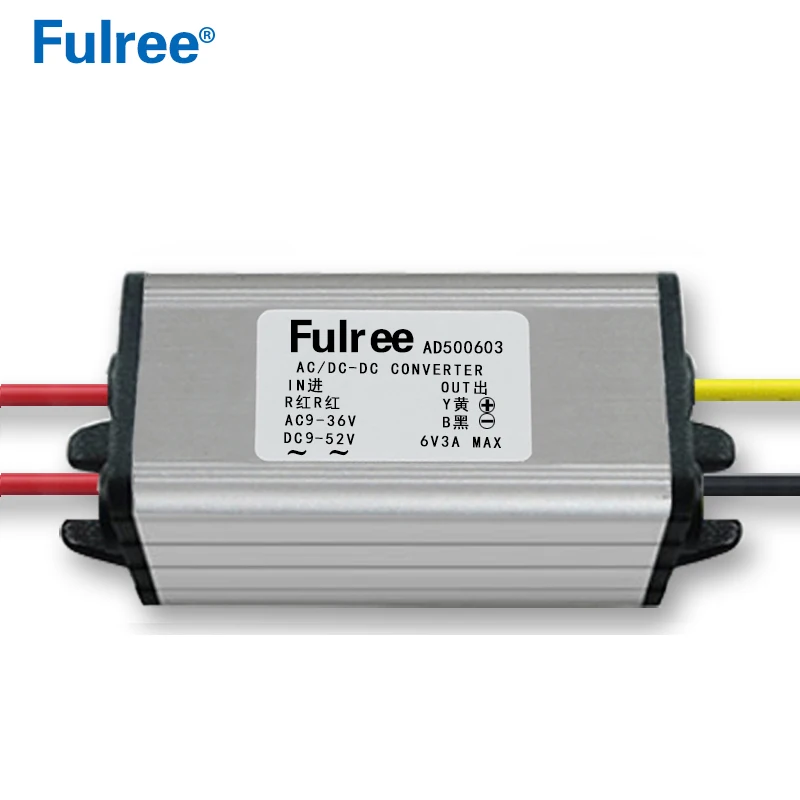

| Product name | AC DC Converter 24V to 3.3V, 4.2V, 5V, 6V, 7.5V, 9V |
| Model | AD501203 |
| Input rated voltage | 24V 36V |
| Efficiency |
≥ 85% |
| Output voltage | DC 3.3V, 4.2V, 5V, 6V, 7.5V, 9V 12V |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature |
-25°c ~+65°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties |
non-isolated buck module(buck) |
| Rectification | synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50°c |
| Protection | Over-current, Over-temperature, Input Reverse Polarity Protection
waterproof IP68 design, anti-shock protection |
| NW | 75G |

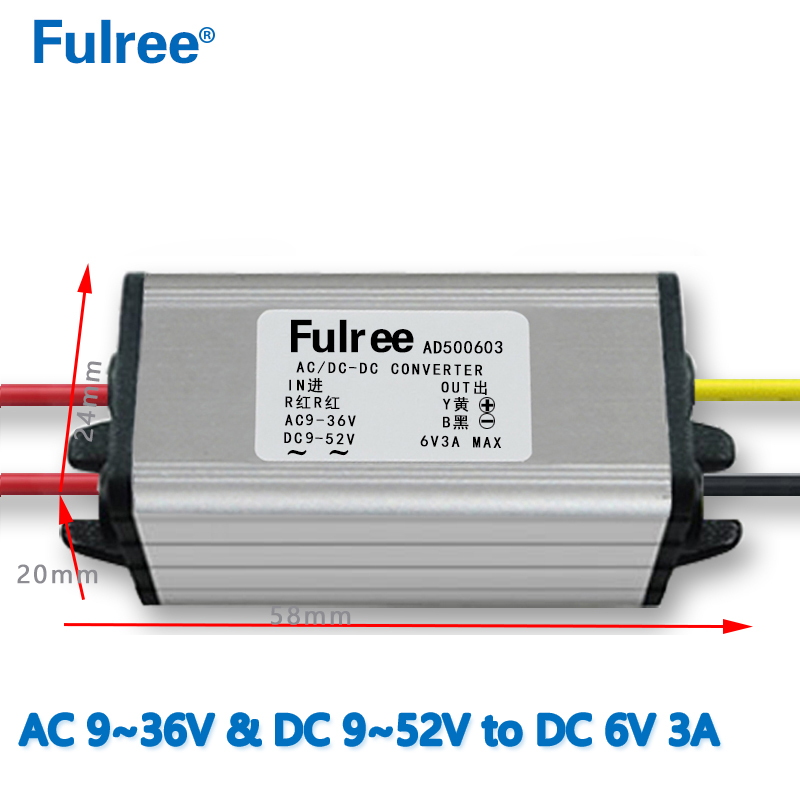

| Product size | 58*24*20mm |
|
Other ouput voltage available |
3.3V, 3.7V, 4.2V, 5V, 6V, 7.5V, 9V (pls contact with our sales manager if need) |
|
Attention: >Pls install according to the the label strictly, |
|
